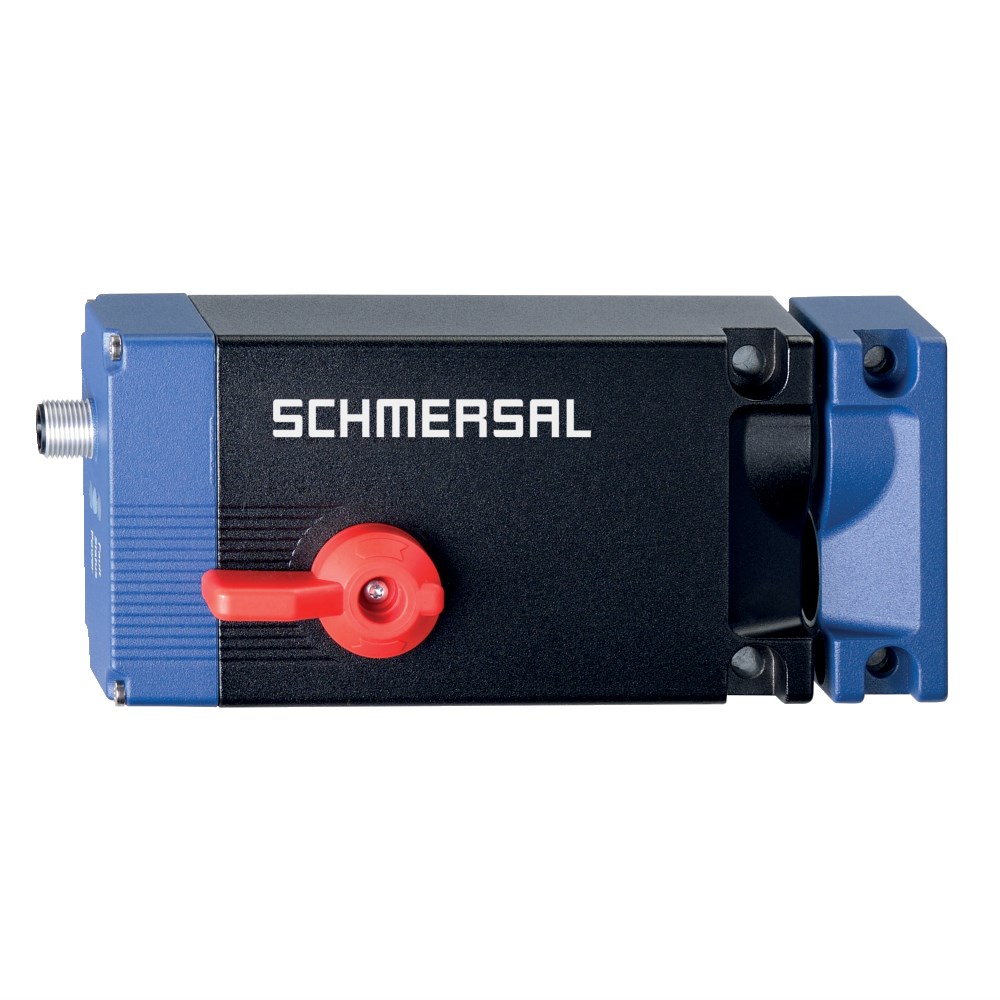

Schmersal 103003841 Solenid Interlock Switch 24VAC/VDC

Product Code: 103003841

  • Operates on 24 VAC/VDC
  • Withstands up to 100 A current
  • Durable die-cast light alloy housing
  • High protection level: IP66, IP67
  • Certified by TUV, cULus, FCC & more
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 40

Electrical

Rated Voltage (Ur)
24 VDC -15 % / +10 % (stabilised PELV power supply)

Mechanical

Actuator Type
AZM400-B1
Guard Locking Force
10,000N
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
65.3mm
Height
156.7mm
Weight
0.846kg
Width
77.8mm

Environmental

Operating Temperature
-20°C to 55°C
IP Rating
IP66; IP67

Documents

IPD Product Catalogue V17
