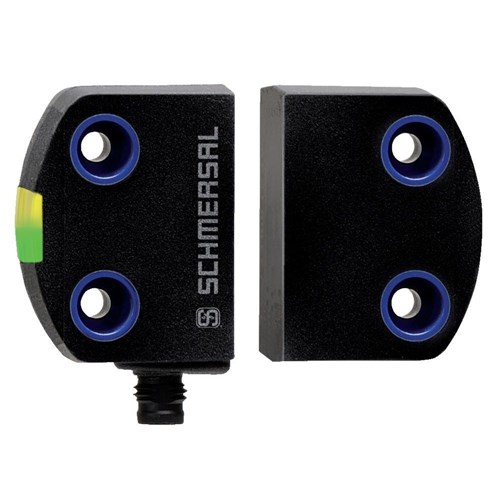

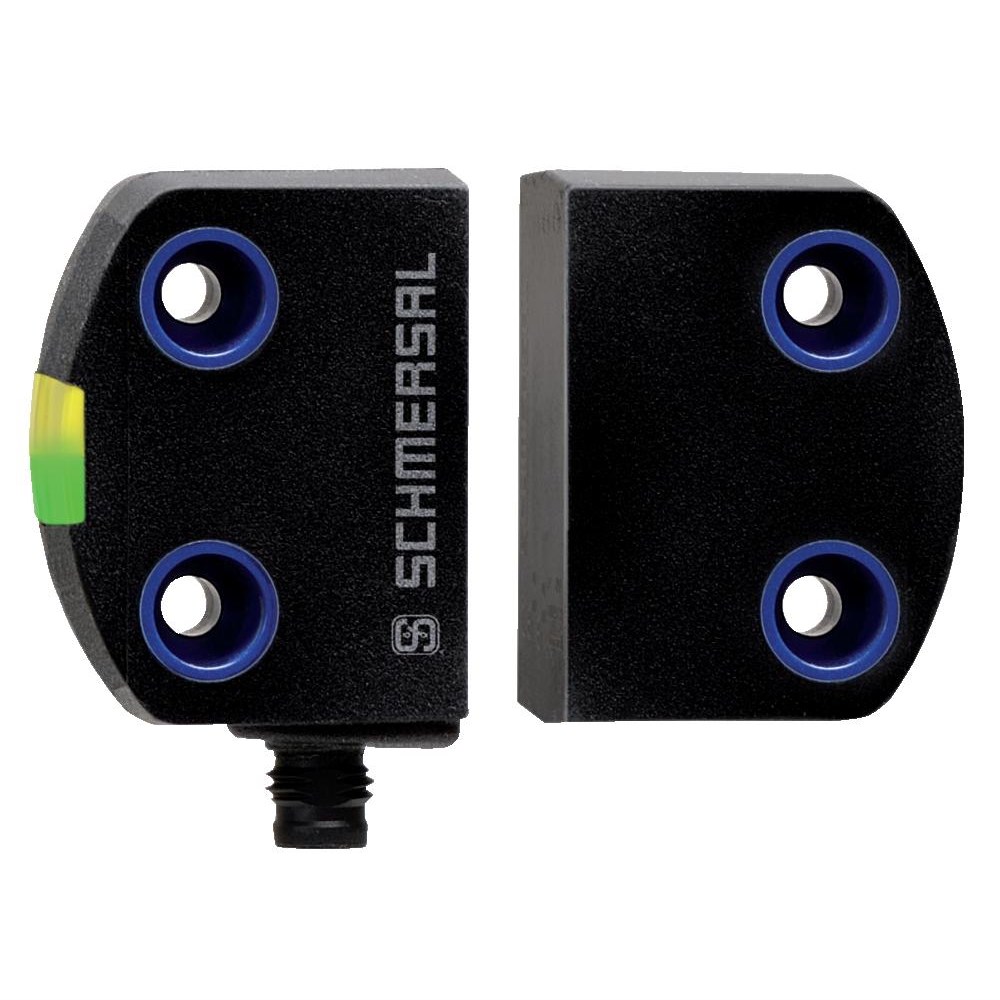

Schmersal 103003604 Safety Sensor

Product Code: 103003604

  • Operates at 125 kHz frequency
  • Not flush mounting type
  • 12 mm switching distance
  • Durable glass fibre reinforced plastic housing
  • Complies with EN ISO 13849-1, EN IEC 60947-5-3, EN IEC 61508 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Safety Sensor (Rfid)
Brand
Schmersal
Series
RSS 260

Electrical

Plug Type
M8 connector, 8-pole
Rated Current (In)
0.6A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
RST-U-2, RST16-1, RST260-1
Housing Material
Plastic, thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
29.5mm
Height
18mm
Weight
0.054kg
Width
39.2mm

Environmental

Operating Temperature
-28°C to 65°C
IP Rating
IP65, IP67

Documents

IPD Product Catalogue V17
