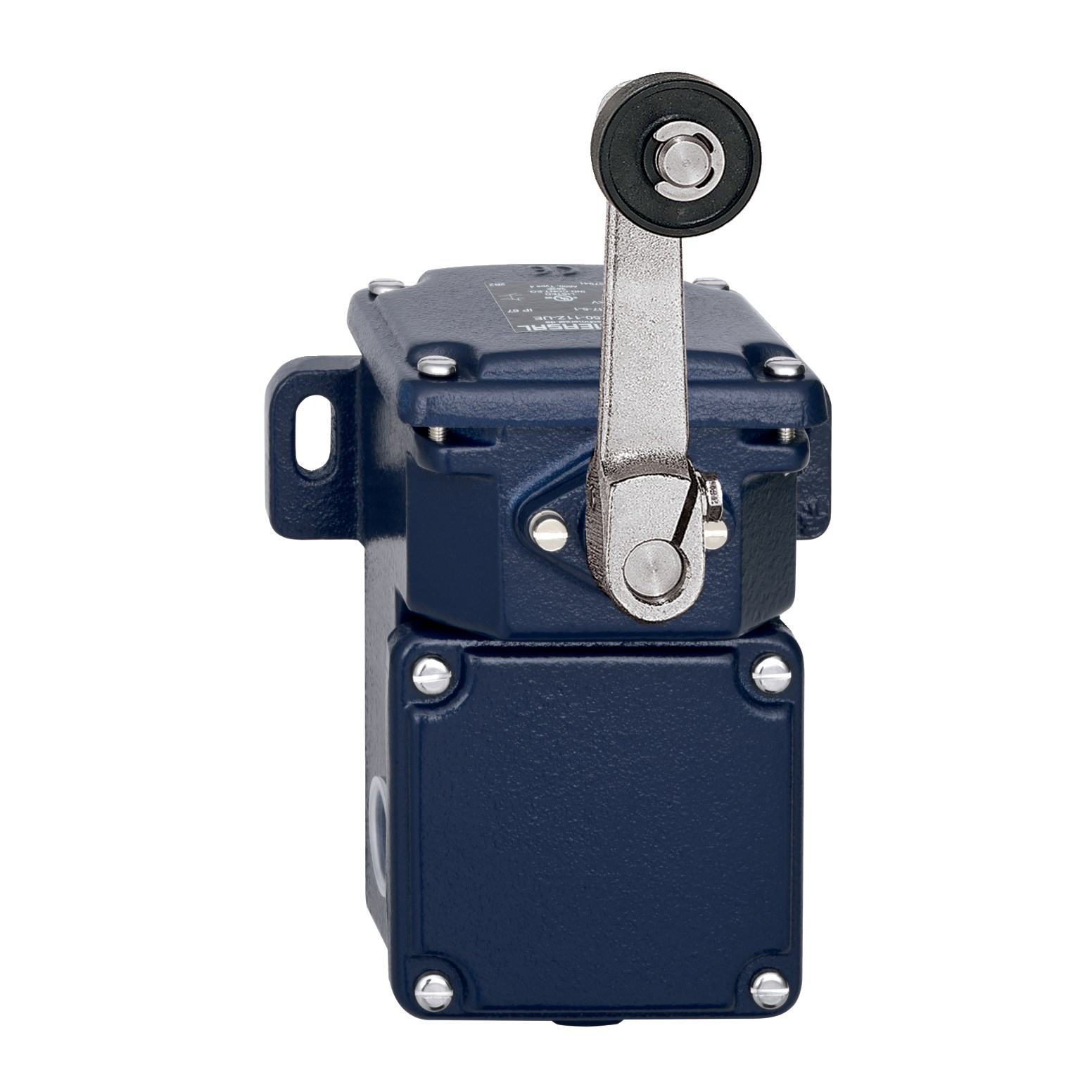

Schmersal 103002239 Position Switch

Product Code: 103002239

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
250 roller lever D

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Insulation Voltage (Ui)
400V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
400V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Roller lever
Contact Material
Metal, CuZn, gold-plated
Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
125mm
Height
257mm
Weight
3,000g
Width
146mm

Environmental

IP Rating
IP67
Ambient Temperature
-40°C to 90°C

Documents

IPD Product Catalogue V17
