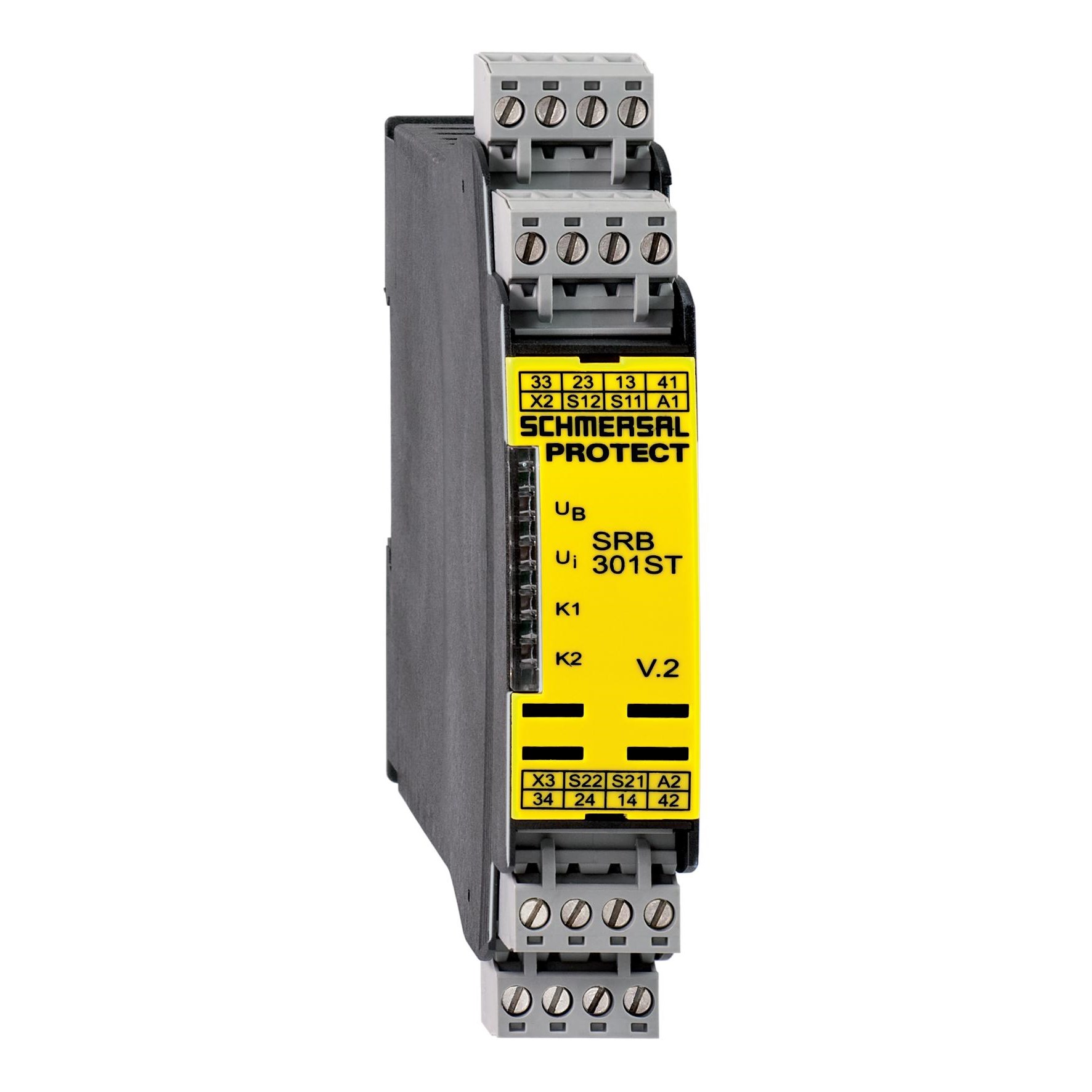

Schmersal 103002205 Safety Relay Module 26.4VAC, 28.8VDC

Product Code: 103002205

  • Operates at 26.4 VAC or 28.8 VDC
  • Durable with 10 million mechanical cycles
  • Compact size: 22mm width, 120mm height
  • Made from glass fibre reinforced thermoplastic
  • IP20/IP40 protection against dust and water
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Relay Module
Brand
Schmersal
Series
SRB301ST-24 V-(V.3)

Electrical

Switching Current
8:00 AM
Switching Voltage
250 V AC
Supply Voltage
24 V AC, 24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
121 mm
Height
120 mm
Weight
250 g
Width
22.5 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Relay Outputs
1
Safe Relay Outputs, Stop 0
3
Safe Relay Outputs, Stop 1
0
Safety Category
4
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes
Performance Level
PL e
