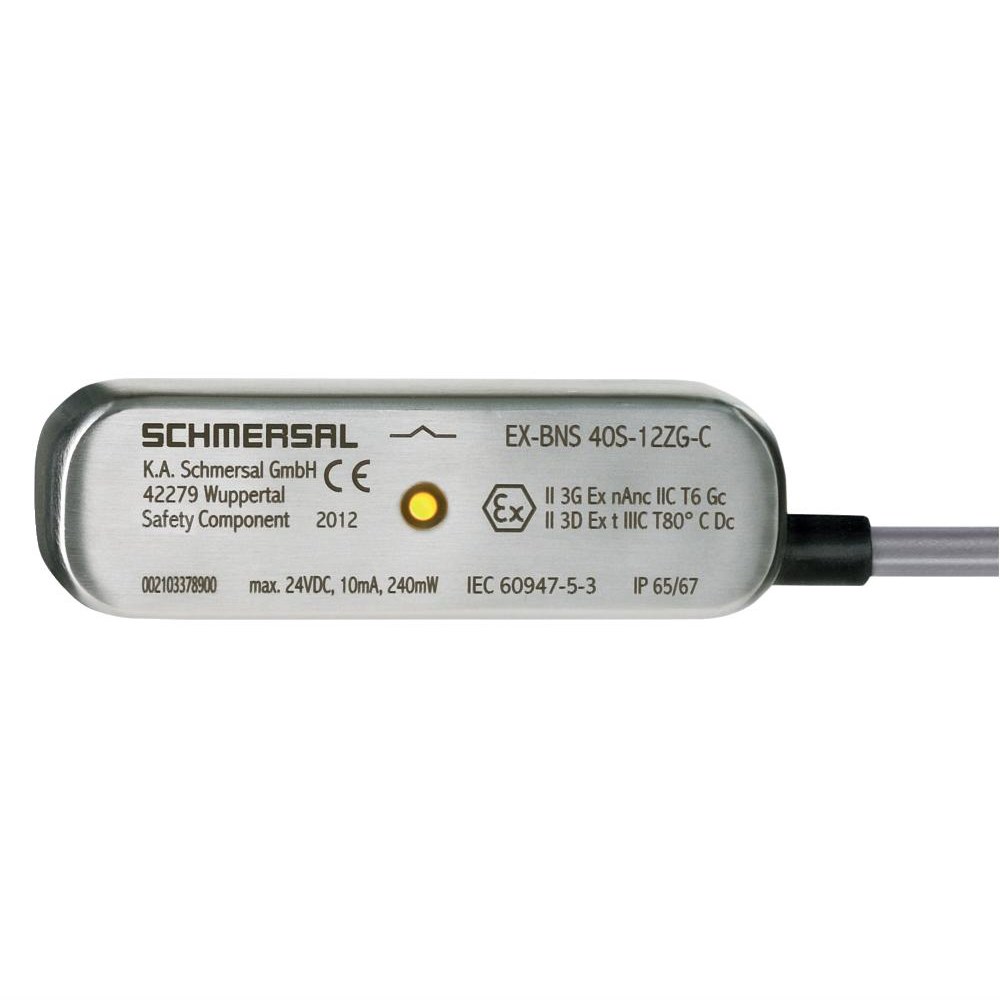

Schmersal 103002179 Magnetic Safety Sensor 10m Cable

Product Code: 103002179

  • Operates at 24 VDC with low power usage
  • Durable stainless steel housing
  • High protection rating of IP65, IP67
  • Long mechanical life: 25 million cycles
  • Extended cable length of 10 m
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Explosion - Protected Magnetic Safety Sensor
Brand
Schmersal
Series
EX-BNS 40S

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 40S-2-C; BPS 40S-2; BPS 40S-1-C
Housing Material
Stainless steel (V4A)

Dimensions & Physical Data

Depth
14mm
Height
27mm
Weight
0.645kg
Width
88mm
Cable Length
10m

Environmental

Operating Temperature
-20°C to 60°C
IP Rating
IP67; IP65
