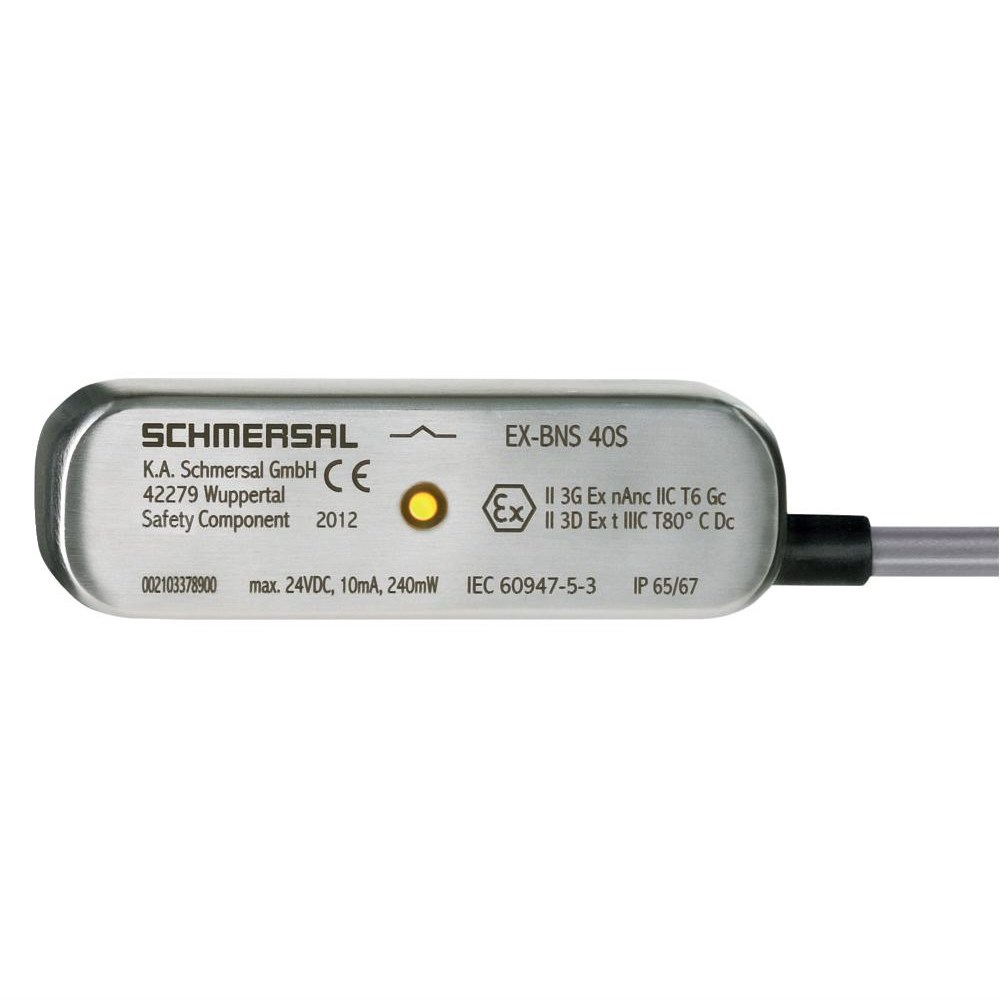

Schmersal 103002171 Magnetic Safety Sensor 1m Cable

Product Code: 103002171

  • Operates at 24 VDC, 0.01 A for low power use
  • Durable with 25 million cycle mechanical life
  • Stainless steel housing ensures robust protection
  • IP65/IP67 rated for water and dust resistance
  • Compact size: 14.5 x 88 x 27 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Explosion - Protected Magnetic Safety Sensor
Brand
Schmersal
Series
EX-BNS 40S

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 40S-2-C; BPS 40S-2; BPS 40S-1-C
Housing Material
Stainless steel (V4A)

Dimensions & Physical Data

Depth
14mm
Height
27mm
Weight
0.2kg
Width
88mm
Cable Length
1m

Environmental

Operating Temperature
-20°C to 60°C
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
