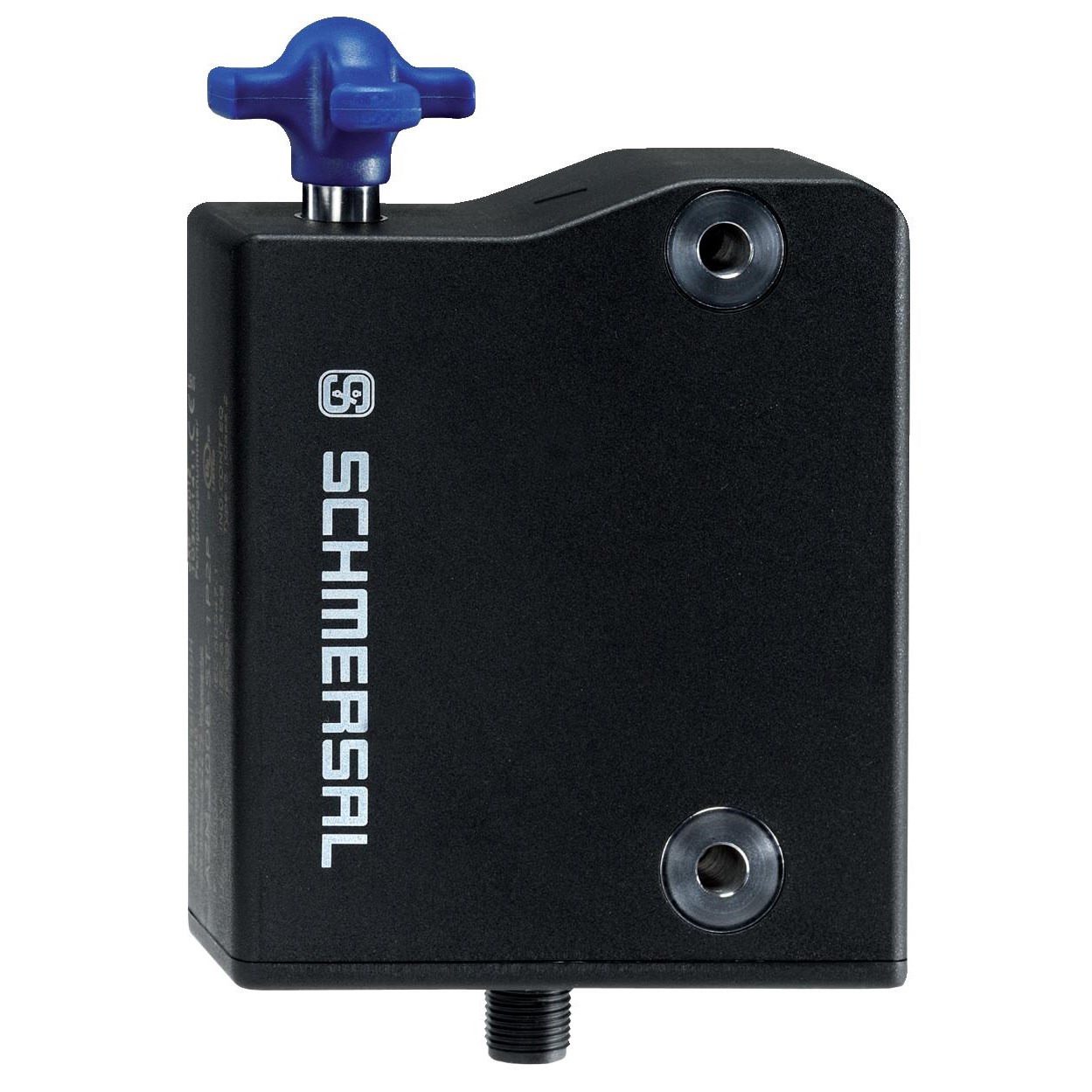

Schmersal 103001423 Solenid Interlock Switch

Product Code: 103001423

  • Durable with 1,000,000 cycle lifespan
  • High protection rating of IP69
  • Compact 40 mm sensor size
  • Operates up to 50°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 300

Electrical

Rated Current (In)
0.8A
Rated Voltage (Ur)
24 VDC -15 % / +10 % (stabilised PELV power supply)

Mechanical

Actuator Type
AZ/AZM300-B1
Guard Locking Force
1,150N
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
120mm
Height
35mm
Weight
0.6kg
Width
87.5mm

Environmental

Operating Temperature
0°C to 60°C
IP Rating
IP66; IP69; IP67
