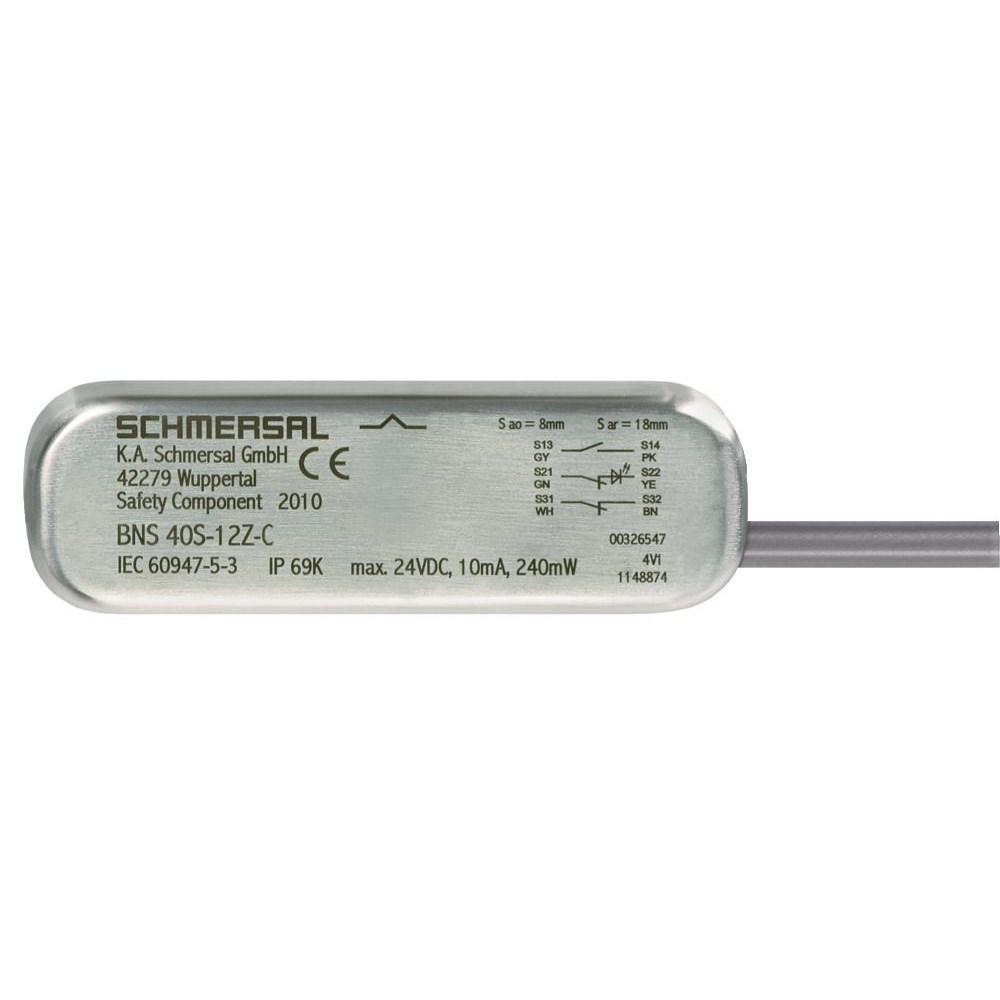

Schmersal 103000655 Magnetic Safety Sensor 1NO+2NC 10m Cable

Product Code: 103000655

  • Rated 0.25 A, 3 W for efficient performance
  • Durable stainless steel housing
  • IP69 protection for harsh environments
  • Operates in -25 to 80°C temperature range
  • Includes a 10 m cable length
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 40S

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.25A

Mechanical

Actuator Type
BPS 40S-1; BPS 40S-2-C; BPS 40S-2; BPS 40S-1-C
Housing Material
Stainless steel (V4A)

Dimensions & Physical Data

Depth
14mm
Height
27mm
Weight
0.5kg
Width
88mm
Cable Length
10m

Environmental

Operating Temperature
-25°C to 75°C
IP Rating
IP69

Documents

IPD Product Catalogue V17
