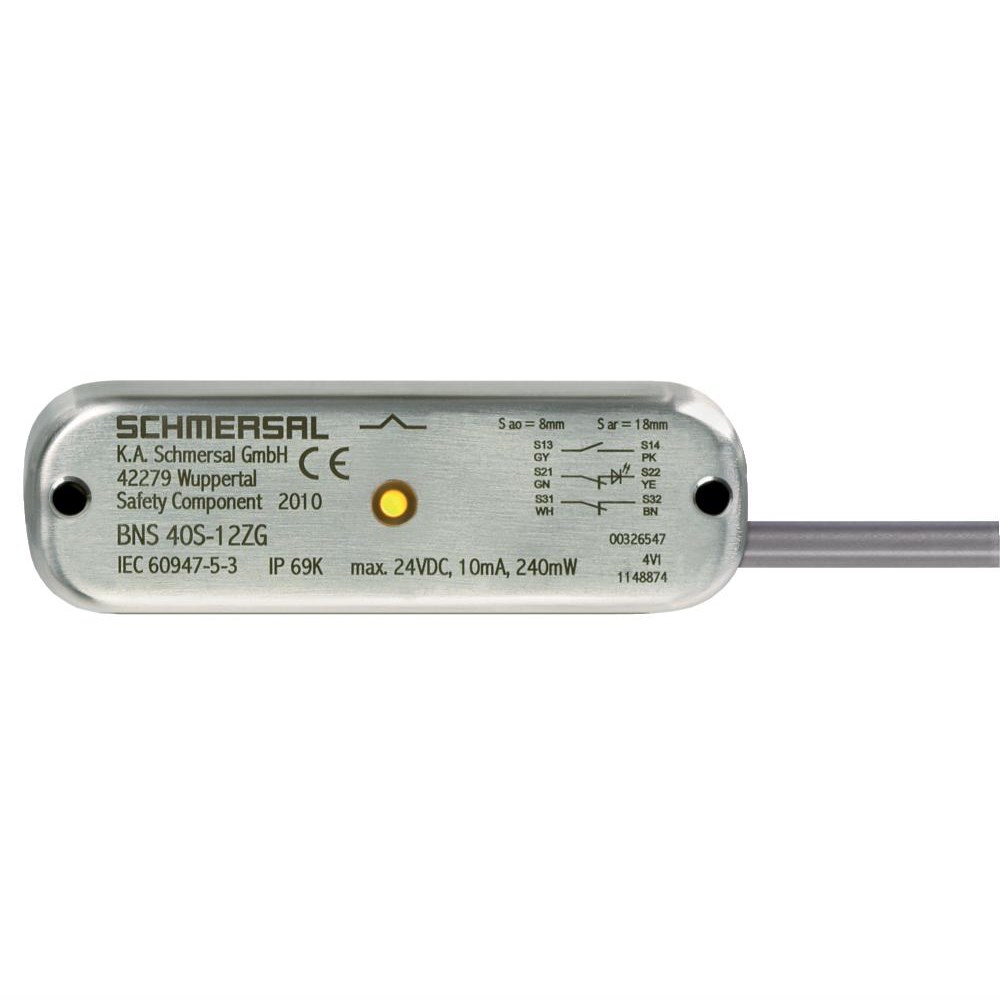

Schmersal 103000648 Magnetic Safety Sensor 1NO+2NC 5m Cable

Product Code: 103000648

  • Compact stainless steel housing, IP69 rated
  • 1NO+2NC contact configuration for versatile use
  • Operates in -25 to 80°C temperature range
  • 5m cable length for flexible installation
  • Complies with BG-GS-ET-14 and EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 40S

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1

Mechanical

Actuator Type
BPS 40S-1, BPS 40S-1-C, BPS 40S-2, BPS 40S-2-C
Housing Material
Stainless steel (V4A)

Dimensions & Physical Data

Depth
14mm (Length)
Height
27mm
Weight
0.0004kg
Width
88mm
Cable Length
5m

Environmental

IP Rating
IP69
Ambient Temperature
-25°C to 80°C
