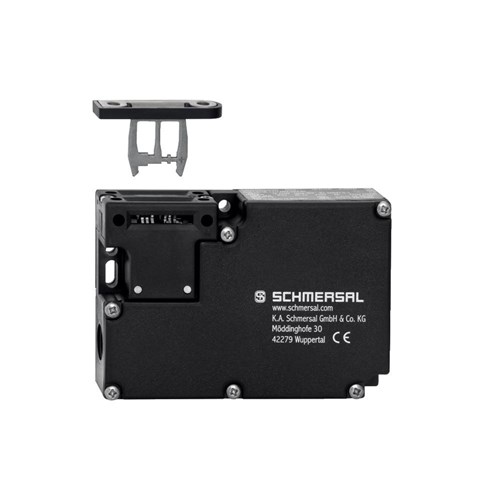

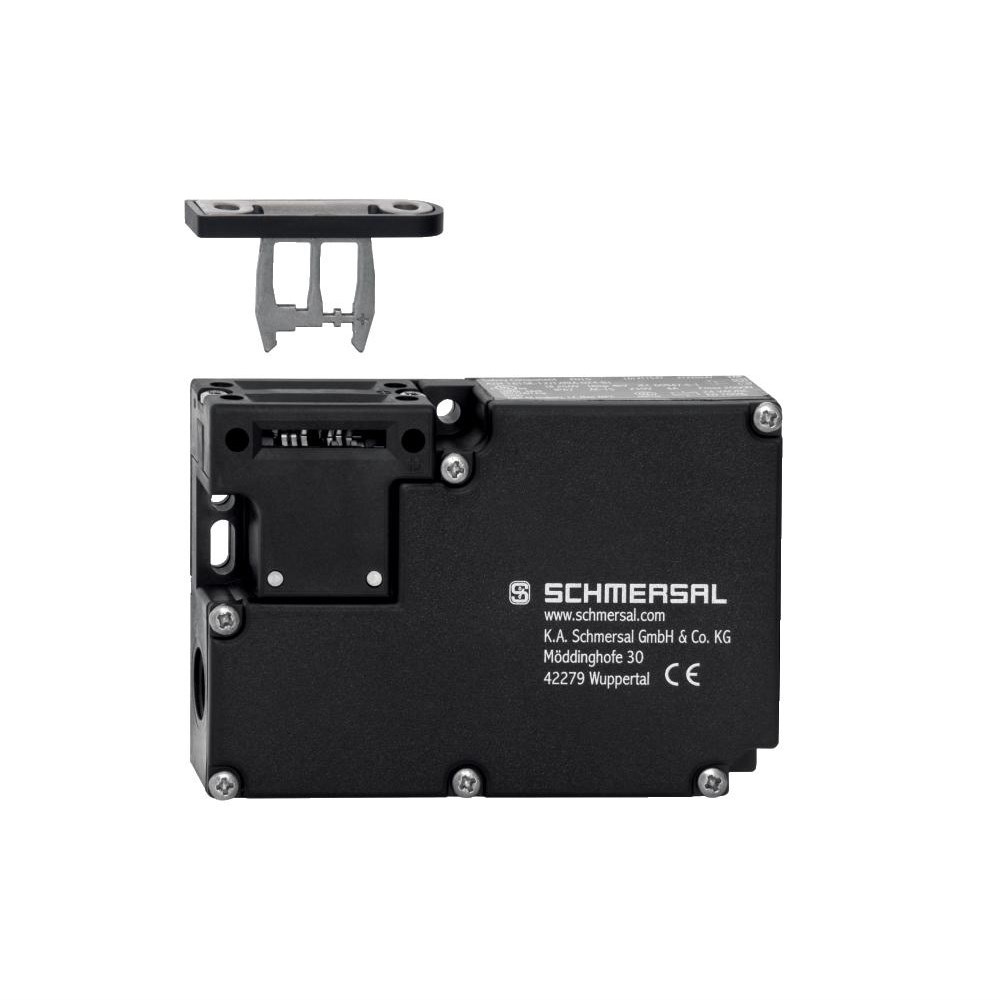

Schmersal 101216921 Solenid Interlock Switch 24/230VAC, 24VDC NO+NC

Product Code: 101216921

  • Versatile 24/230 VAC, 24 VDC voltage options
  • Durable with 1 million mechanical cycles
  • Robust IP67 protection for harsh environments
  • Compact design: 30x130x90 mm dimensions
  • Compliant with EN IEC & ISO safety standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 161

Electrical

No. of N/C Contacts
4
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
4 x M16 x 1.5
Guard Locking Force
2,000 N
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
30 mm
Height
90 mm
Weight
520 g
Width
130 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67
