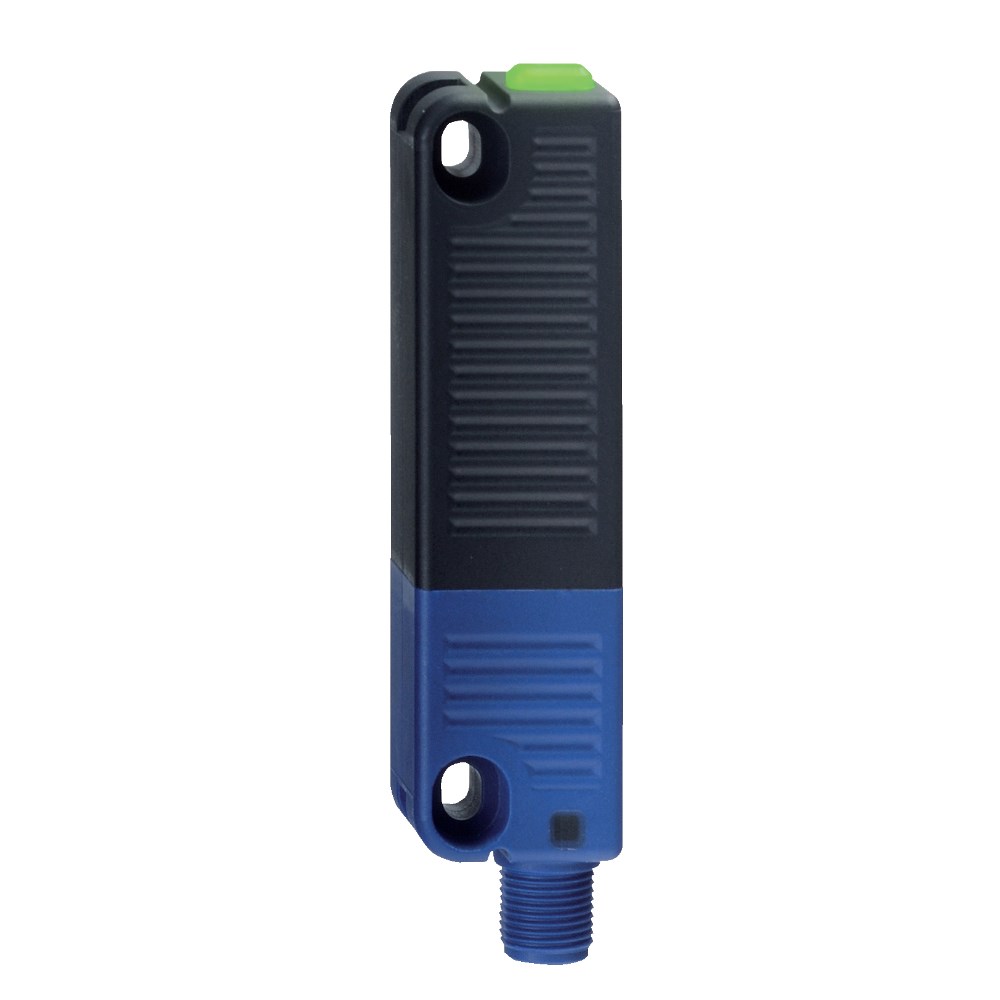

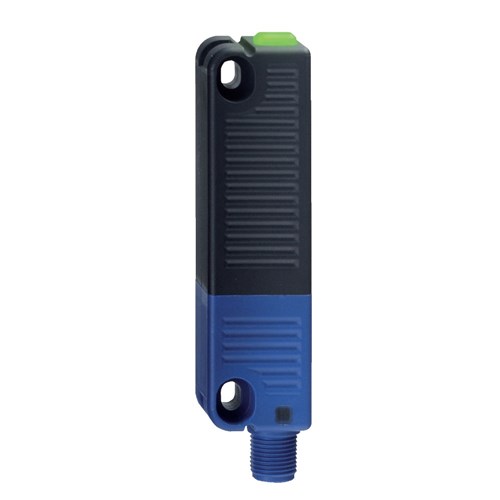

Schmersal 101213956 Safety Sensor

Product Code: 101213956

  • Operates at 125 kHz frequency
  • Durable with 1M mechanical cycles
  • Non-flush mounting design
  • 12 mm switching distance
  • Reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Safety Sensor (Rfid)
Brand
Schmersal
Series
RSS 36

Electrical

Plug Type
M12 connector, 8-pole
Rated Current (In)
0.6A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
RST 36-1, RST 36-1-R
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
22mm
Height
25mm
Weight
0.1kg
Width
106.3mm

Environmental

Operating Temperature
-28°C to 70°C
IP Rating
IP65, IP67, IP69

Documents

IPD Product Catalogue V17
