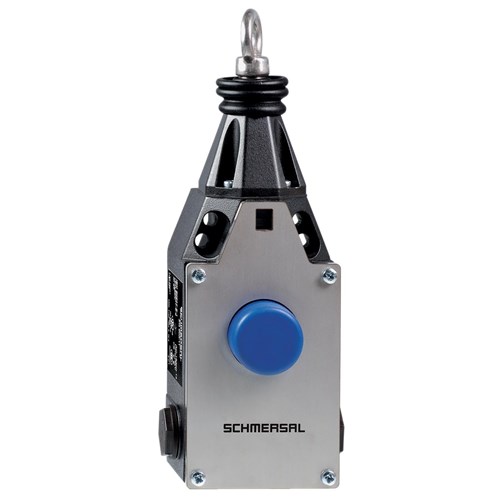

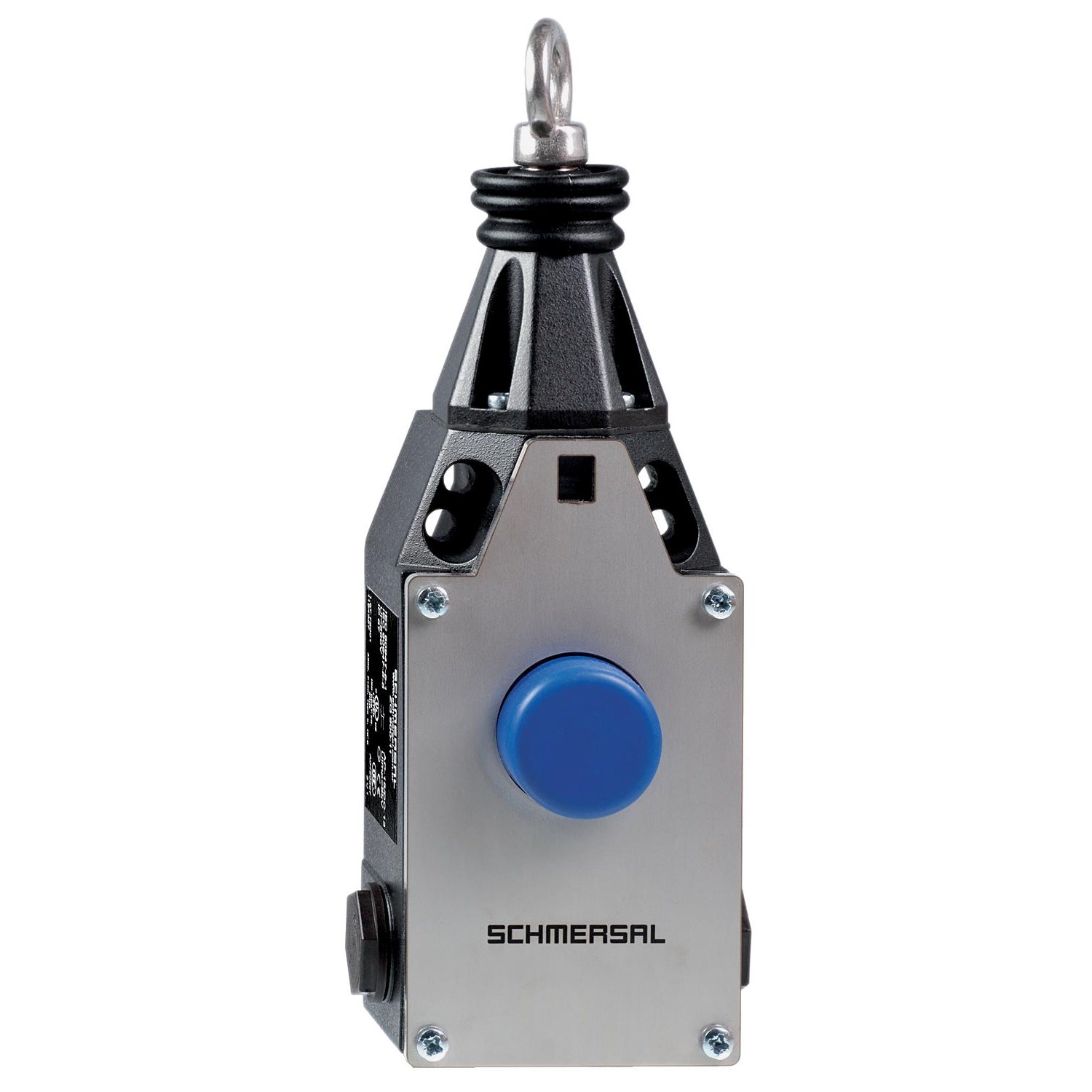

Schmersal 101212894 EX Pull-Wire Emergency Stop Switch

Product Code: 101212894

  • IP67 rated for robust protection
  • Operates up to 55°C
  • Complies with ATEx/IECex standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Ex Pull - Wire Emergency Stop Switch
Brand
Schmersal
Series
EX-ZQ900

Electrical

No. of N/C Contacts
4
No. of N/O Contacts
0
Rated Current (In)
4A at 230V AC, 1A at 24V DC
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
3 x M20 x 1.5
Housing Material
Zinc die-cast, painted

Dimensions & Physical Data

Depth
57mm
Height
221mm to 237mm
Width
71.5mm

Environmental

IP Rating
IP66, IP67
Ambient Temperature
-20°C to 55°C
