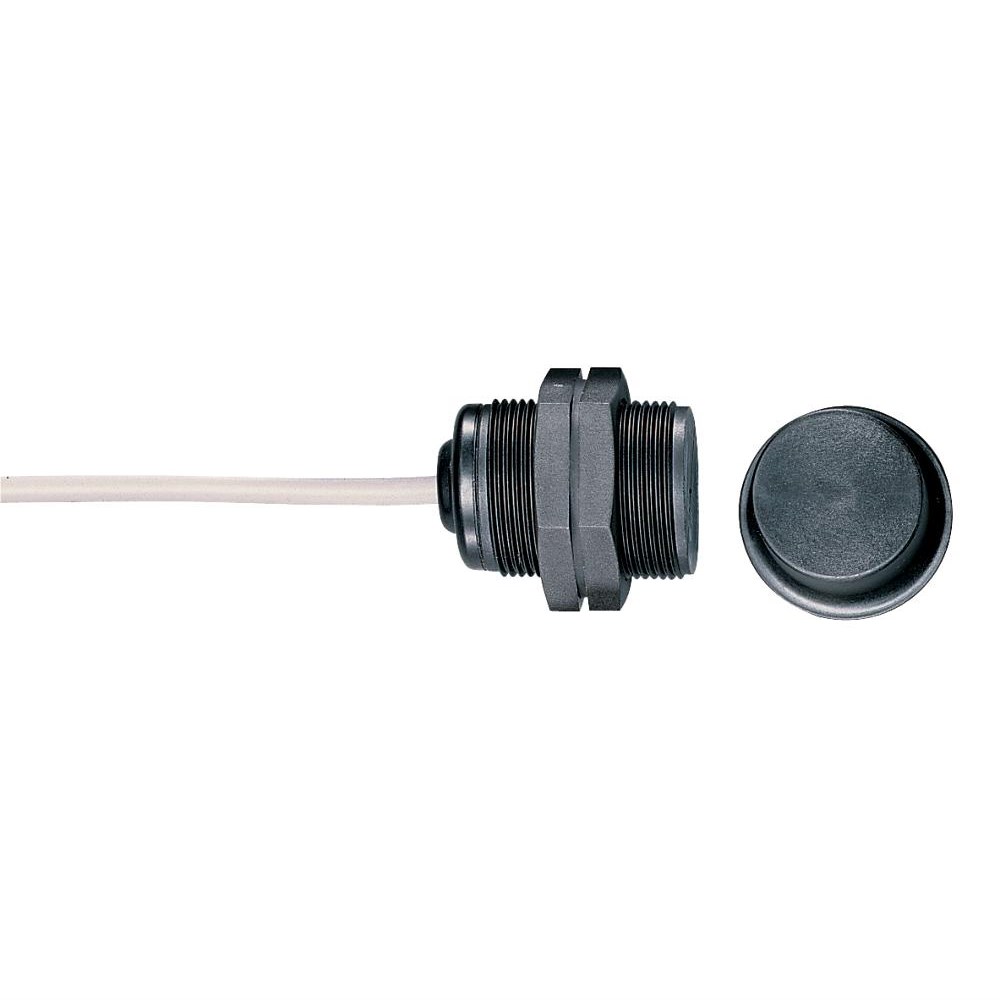

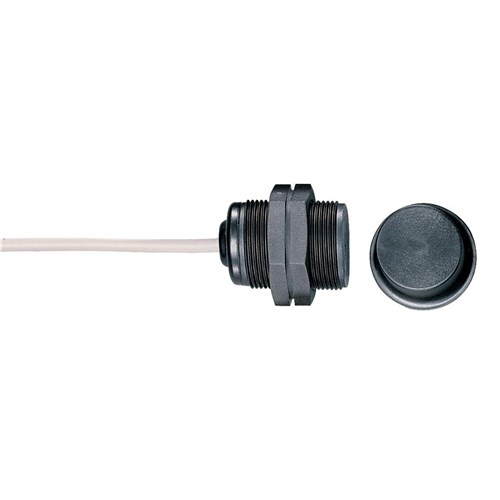

Schmersal 101212654 Magnetic Safety Sensor 1NO+2NC 1m Cable

Product Code: 101212654

  • Rated for 0.01 A, 5 Hz operations
  • IP67 protection ensures durability
  • Glass fibre reinforced thermoplastic housing
  • Magnetic actuating element
  • Compact 44 mm sensor size
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 303

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 303; BPS 300; BPS 303 SS
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
44mm
Weight
0.064kg
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
