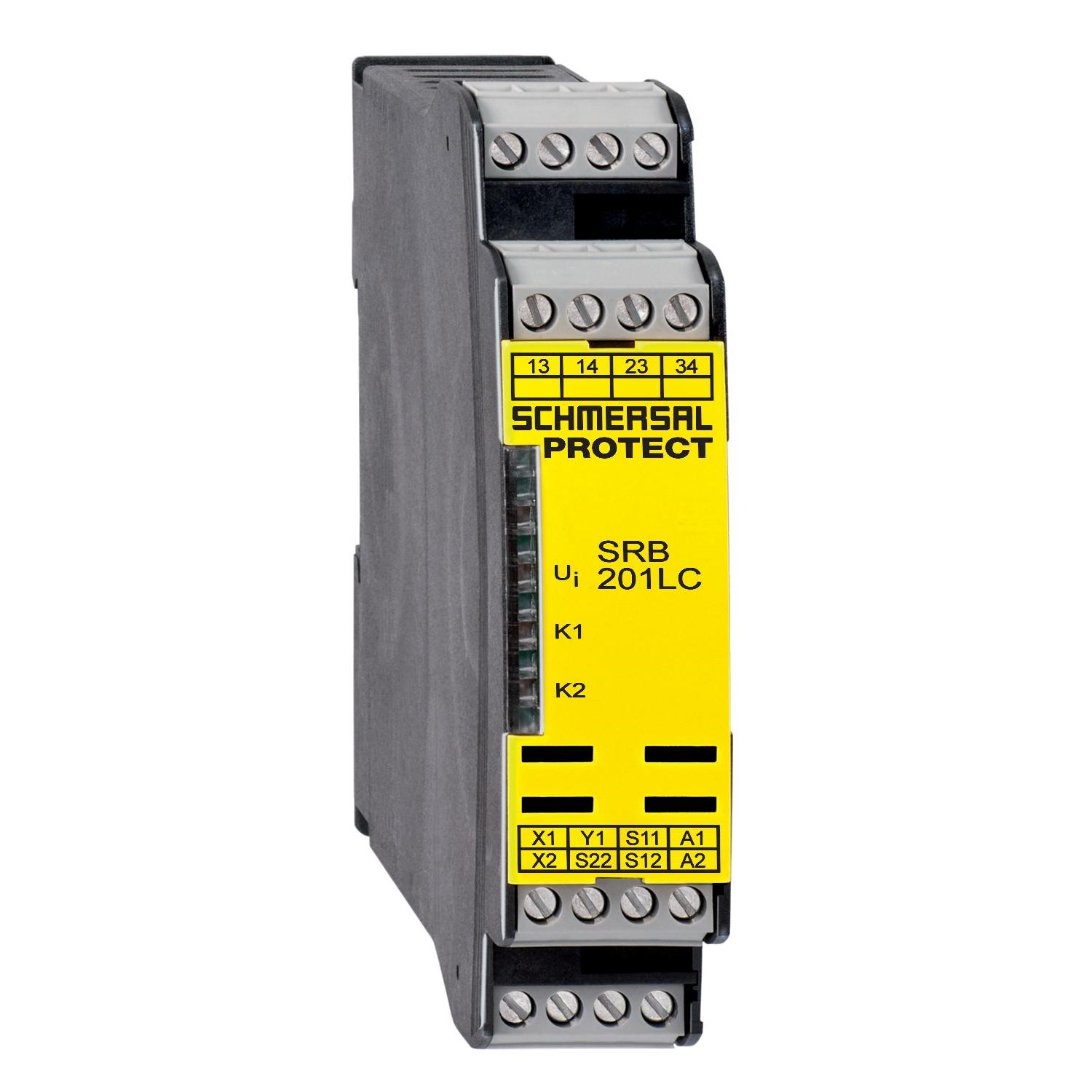

Schmersal 101212555 Safety Relay Module

Product Code: 101212555

  • Durable with 10 million mechanical cycles
  • Easy DIN rail mounting
  • Robust glass fibre reinforced housing
  • IP40 protection for indoor use
  • Complies with EN IEC 60947-5-1, EN ISO 14119 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Main

Product Type
Safety Relay Module
Brand
Schmersal
Series
SRB201LC

Electrical

Switching Current
0.3333333333
Switching Voltage
250 V AC
Supply Voltage
24 V AC, 24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions

Depth
121 mm
Height
100 mm
Weight
200 g
Width
22.5 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP40, IP54, IP20

Safety Classification

Safe Relay Outputs, Stop 1
0
Auxiliary Semiconductor Outputs
1
Monitoring Circuit
Yes
Safe Relay Outputs, Stop 0
2
Safety Category
4
Performance Level
PL e
Safety Integrity Level
SIL 3
