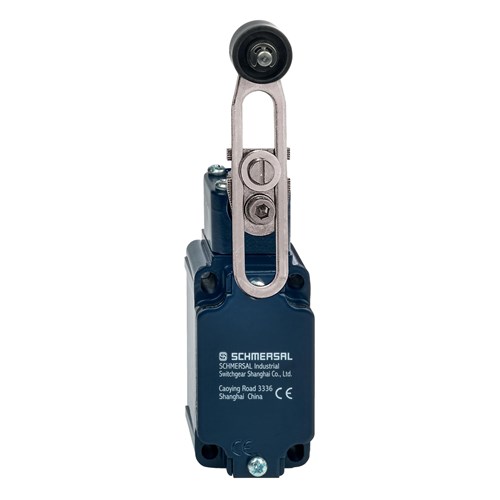

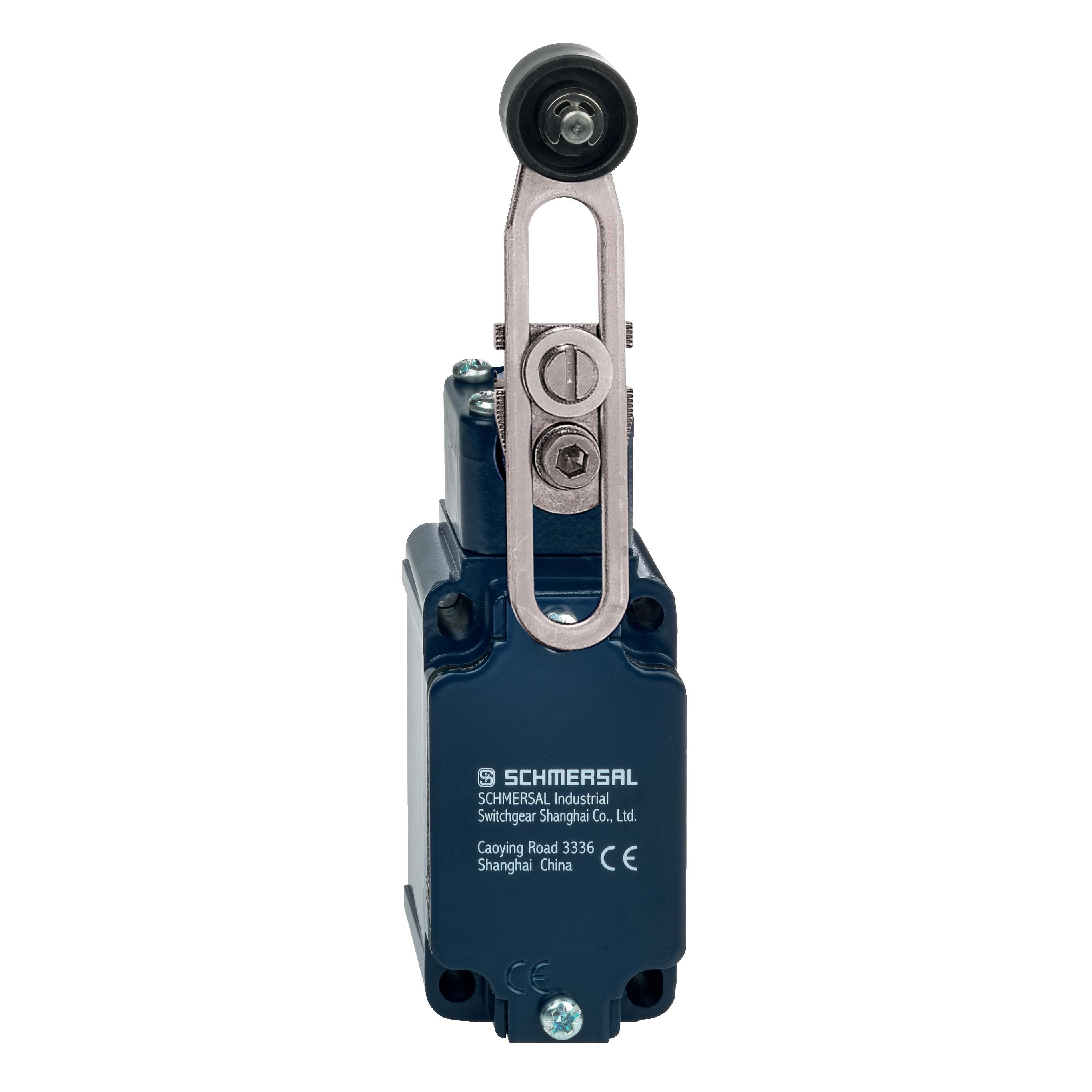

Schmersal 101212066 EX Position Switch with Safety Function

Product Code: 101212066

  • Robust die-cast zinc housing for durability
  • IP65 protection against dust and water
  • Operates in temperatures from -20 to 60°C
  • Long mechanical life of 1 million cycles
  • Fast actuating speed up to 2.5 m/s
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250 VAC 500V
Terminal Type
Screw terminals
Thermal Test Current
5A

Mechanical

Actuator Type
Rod lever
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
38mm
Height
111.5mm
Weight
0.4kg
Width
40.5mm

Environmental

IP Rating
IP65
