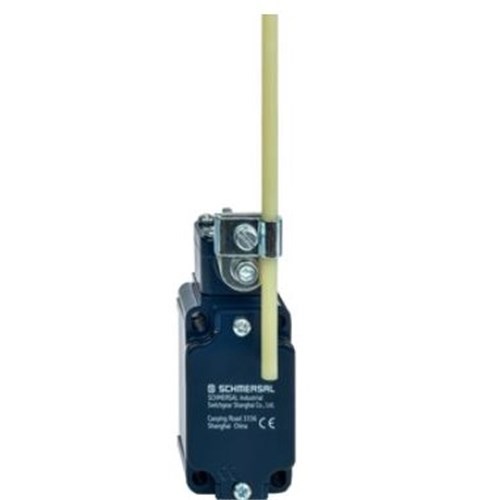

Schmersal 101212062 EX Position Switch

Product Code: 101212062

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
EX-T 335 rod lever

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250 VAC 500V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
5A

Mechanical

Actuator Type
Rod lever
Contact Material
Silver
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
38mm
Weight
0.4kg
Width
40.5mm

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
