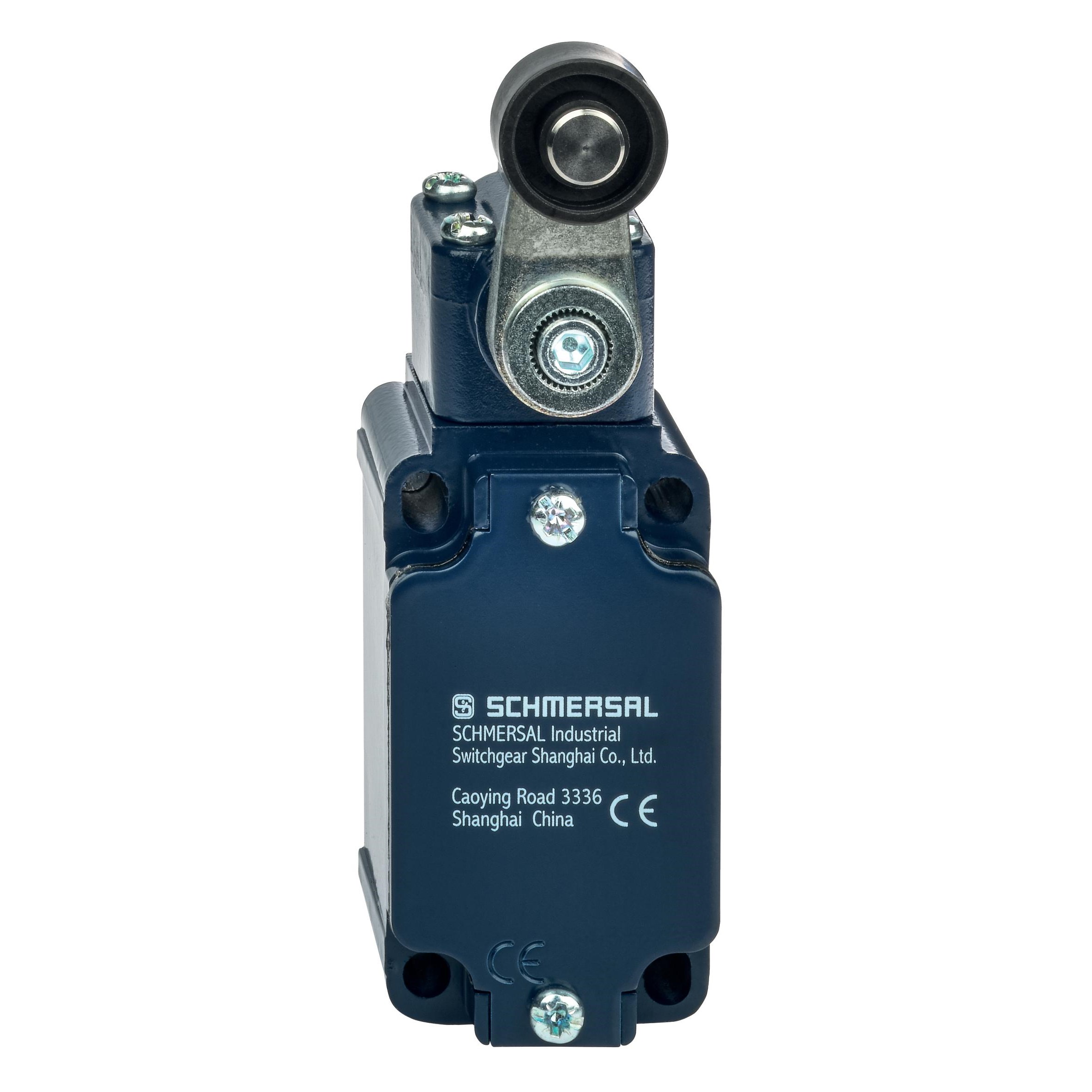

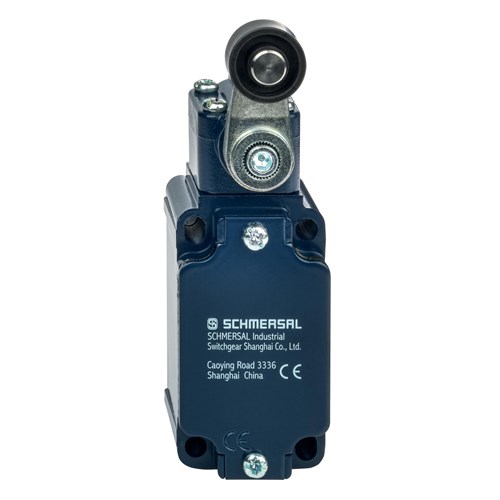

Schmersal 101212058 EX Position Switch with Safety Function 230VAC 1NO+1NC

Product Code: 101212058

  • Durable die-cast zinc housing
  • IP67 protection for harsh environments
  • 1 million mechanical cycles lifespan
  • ATEx, IECEx, cULus certified safety
  • Operates in -20 to 60°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
335

Electrical

Rated Impulse Withstand Voltage (Uimp)
4 kV
Rated Insulation Voltage (Ui)
250/500 V
Switching Principle
Slow action / positive-opening safety contact
Utilization Category
AC-15 230 V
Contact Configuration
1 NC + 1 NO
Mechanical Life
1,000,000 operations
Thermal Test Current
5:00 AM

Mechanical

Cable Entry
M20 x 1.5 mm² cable entry
Housing Material
Zinc die-cast metal housing
Actuator / Operating Element
Roller lever

Dimensions & Physical Data

Depth
134
Height
60.6
Width
40.5

Environmental

IP Rating
IP65

Safety, Standards & Compliance

Standards and Approvals
ATEX; IECEx

Documents

IPD Product Catalogue V17
