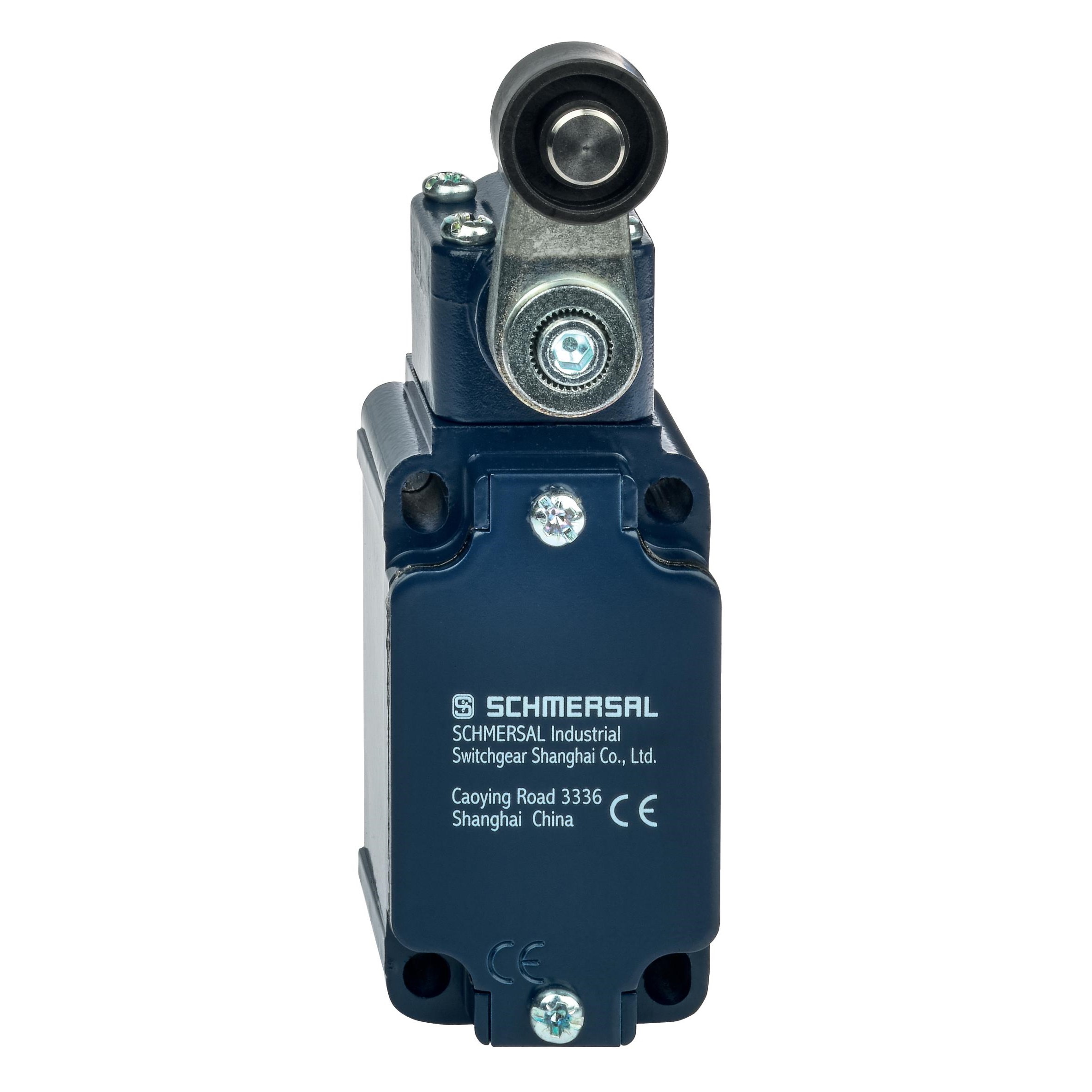

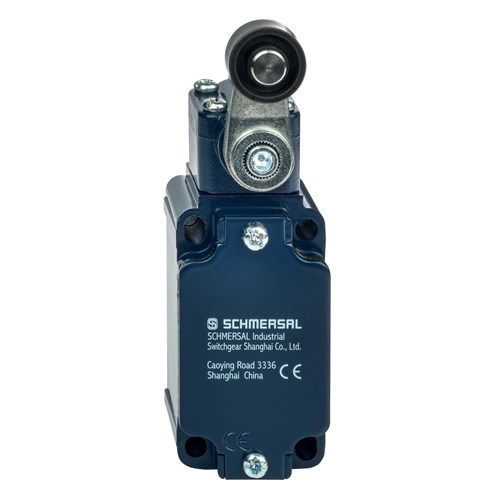

Schmersal 101212057 EX Position Switch with Safety Function 230VAC NC

Product Code: 101212057

  • Rated voltage of 230 VAC with 4 A current
  • Durable metal, die-cast zinc housing
  • IP67 protection for harsh environments
  • Certified to ATEx, IECEx, and more standards
  • Long mechanical life of 1 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
250 VAC 500V
Terminal Type
Screw terminals
Thermal Test Current
5A

Mechanical

Actuator Type
Roller lever
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
60.6mm
Height
134mm
Weight
0.4kg
Width
40.5mm

Environmental

IP Rating
IP65
Ambient Temperature
max. +50°C

Documents

IPD Product Catalogue V17
