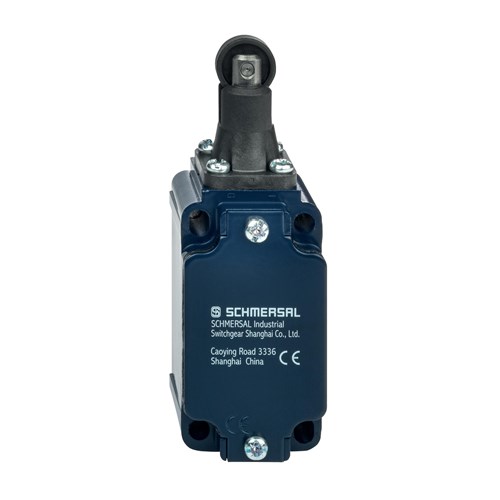

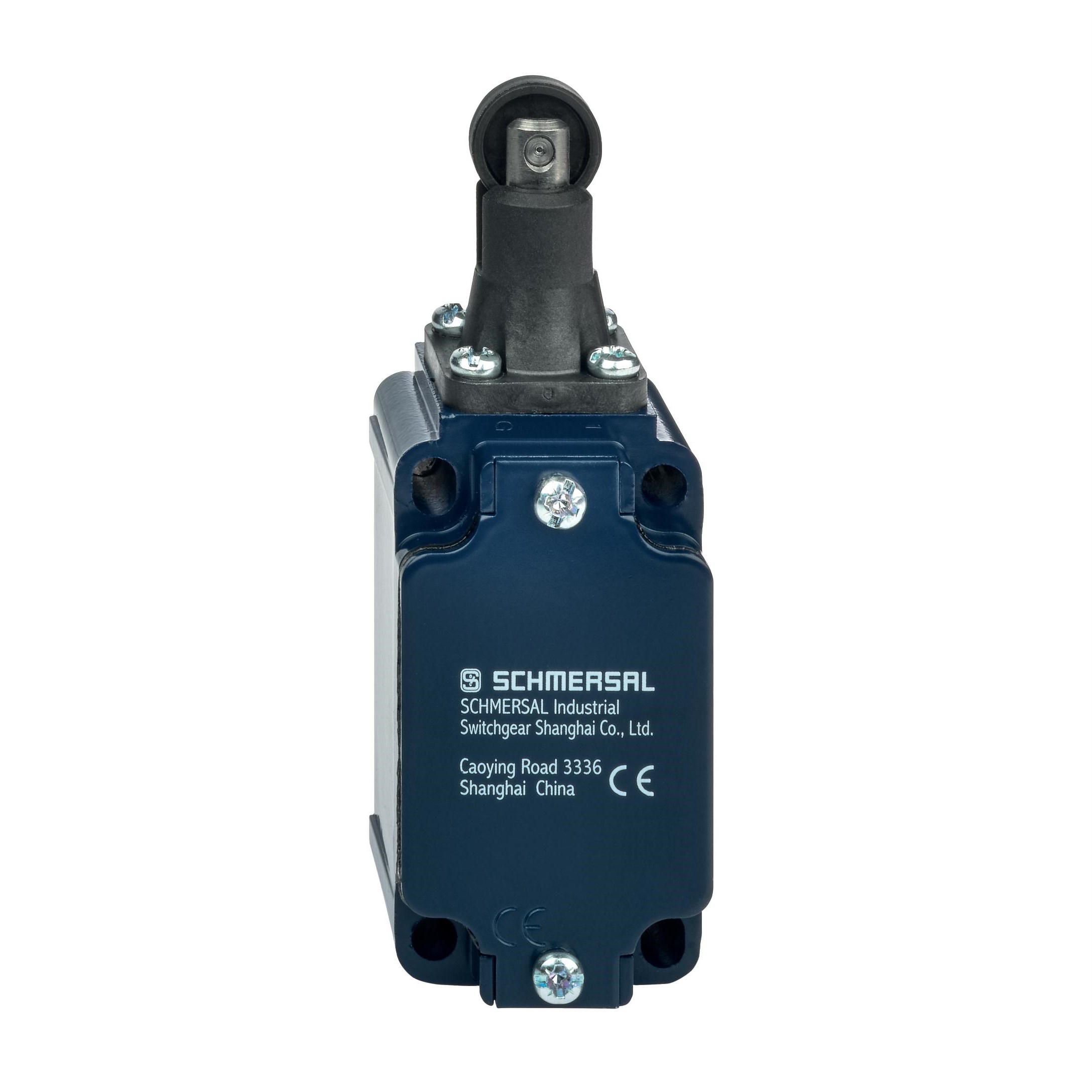

Schmersal 101212055 EX Position Switch with Safety Function 230VAC 1NO+1NC

Product Code: 101212055

  • Robust metal, die-cast zinc housing
  • High protection with IP67 rating
  • Slow action roller plunger mechanism
  • Long mechanical life of 1 million cycles
  • Certified to multiple global standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250 VAC 500V
Terminal Type
Screw terminals
Thermal Test Current
5A

Mechanical

Actuator Type
Roller plunger
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
38mm
Height
116.6mm
Weight
0.32kg
Width
40.5mm

Environmental

IP Rating
IP65
Ambient Temperature
max. +50°C

Documents

IPD Product Catalogue V17
