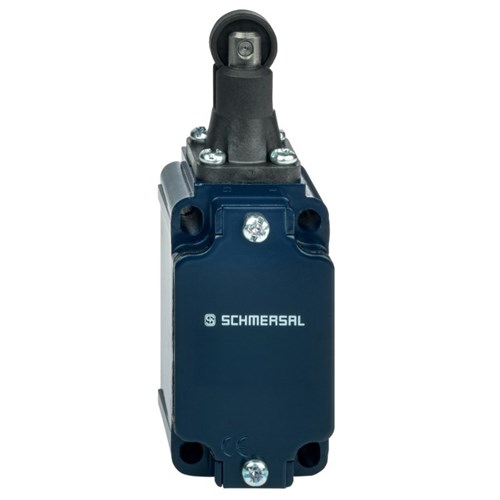

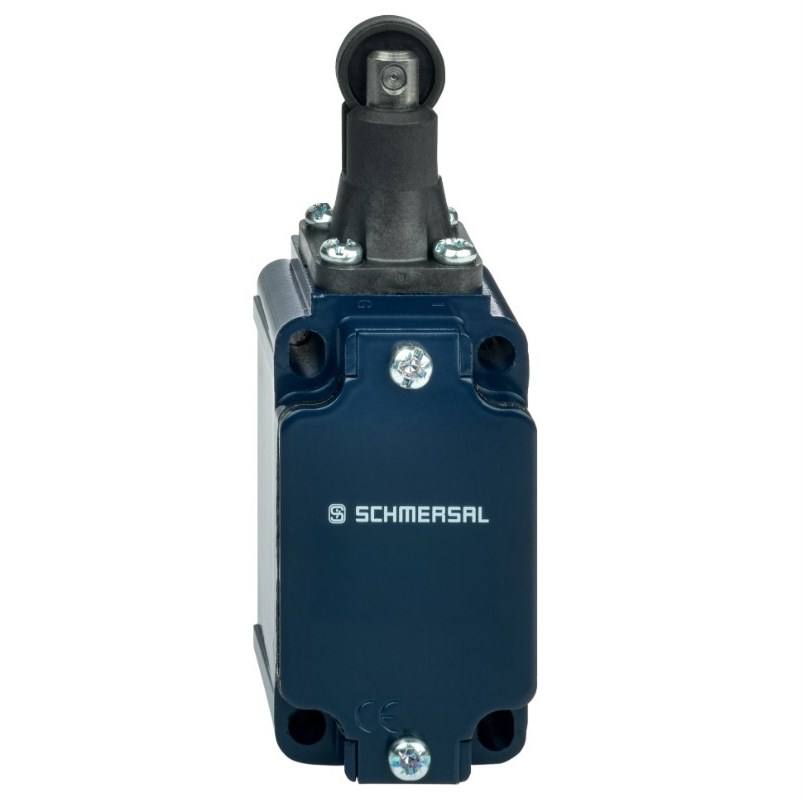

Schmersal 101212054 Position Switch Roller Plunger 2NC Metal Die Cast Zinc Silver Contact

Product Code: 101212054

  • Rated for 5A current
  • Durable die-cast zinc housing
  • IP65 protection rating
  • Certified by cULus, ATEx, IECEx, and more
  • Slow action switching with silver contacts
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
M 330 plunger S

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
250 VAC 500V
Rated Current (In)
4A (AC-15)
Rated Voltage (Ur)
230V AC (AC-15)
Terminal Type
Screw
Thermal Test Current
5A

Mechanical

Actuator Type
Roller Plunger
Contact Material
Silver
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
38mm
Height
116.6mm
Weight
0.32kg
Width
40.5mm

Environmental

IP Rating
IP65
