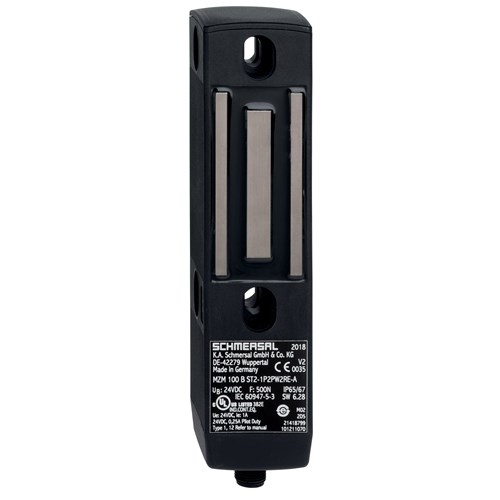

Schmersal 101211066 Solenid Interlock Switch

Product Code: 101211066

  • Durable glass fibre reinforced plastic housing
  • High protection rating: IP65/IP67
  • Operates in -25 to 55°C temperature range
  • Complies with TUV, cULus, UKCA standards
  • Rated insulation voltage of 32V
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
MZM 100

Electrical

Rated Current (In)
1,100mA
Rated Voltage (Ur)
24 VDC -15 % / +10 % (stabilised PELV power supply)

Mechanical

Actuator Type
MZM 100-B1.1
Guard Locking Force
500N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
40mm
Height
177.5mm
Weight
0.7kg
Width
40mm

Environmental

Operating Temperature
-25°C to 55°C
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
