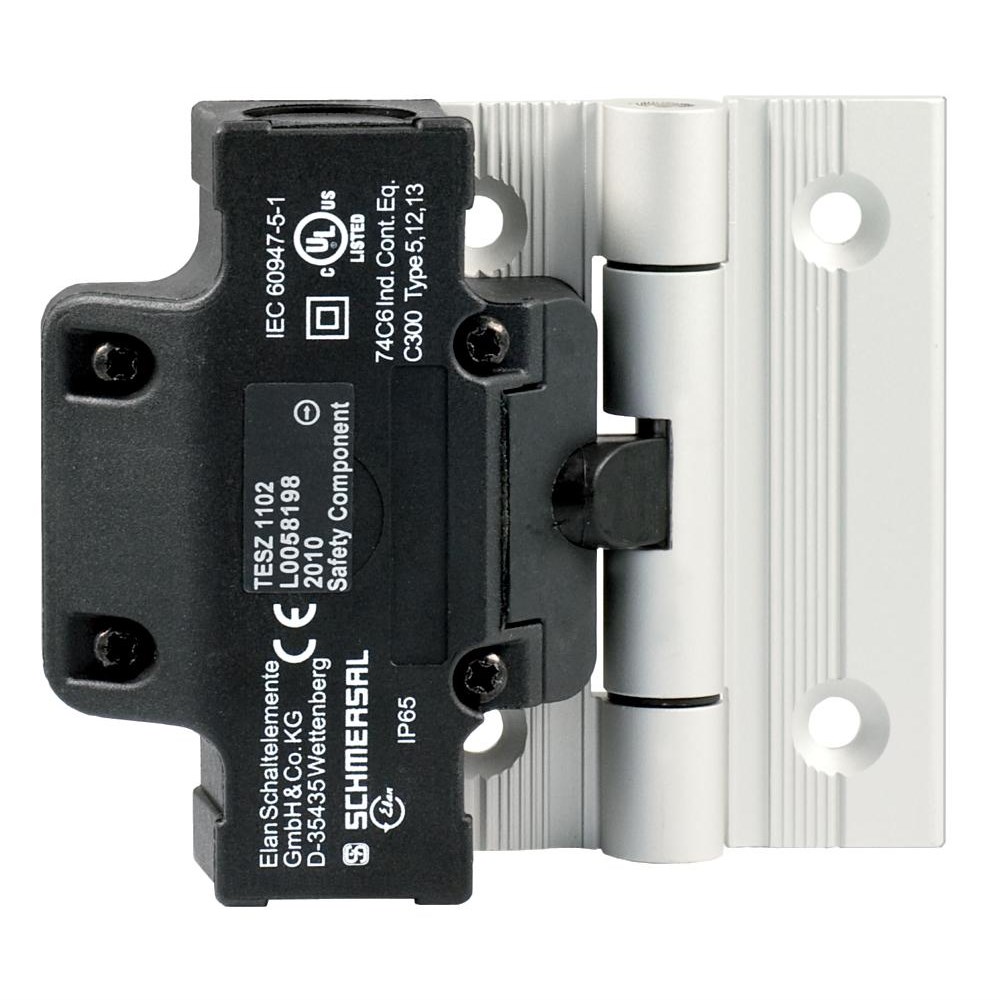

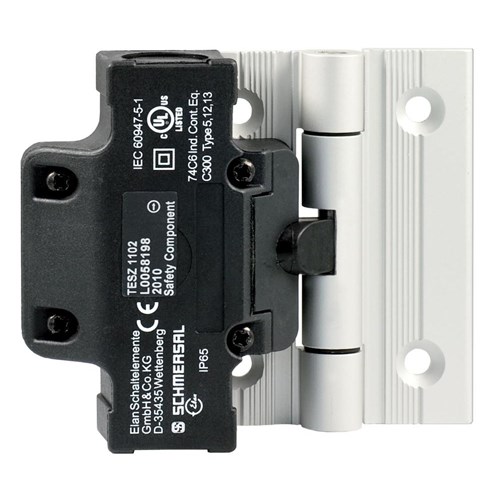

Schmersal 101209497 Safety Hinge Switch 230VAC 1NO+1NC

Product Code: 101209497

  • Rated 230 VAC, 4 A for reliable performance
  • Durable with 1 million mechanical cycles
  • IP65 rated for dust and water resistance
  • Operates in -25 to 65°C temperature range
  • Complies with BG-GS-ET-15, CCC, cULus standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Hinge Switch
Brand
Schmersal
Series
TESZ

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
2A, 1A
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M20 x 1.5
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
36mm
Height
92mm
Weight
0.28647kg
Width
111.5mm

Environmental

Operating Temperature
-25°C to 65°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
