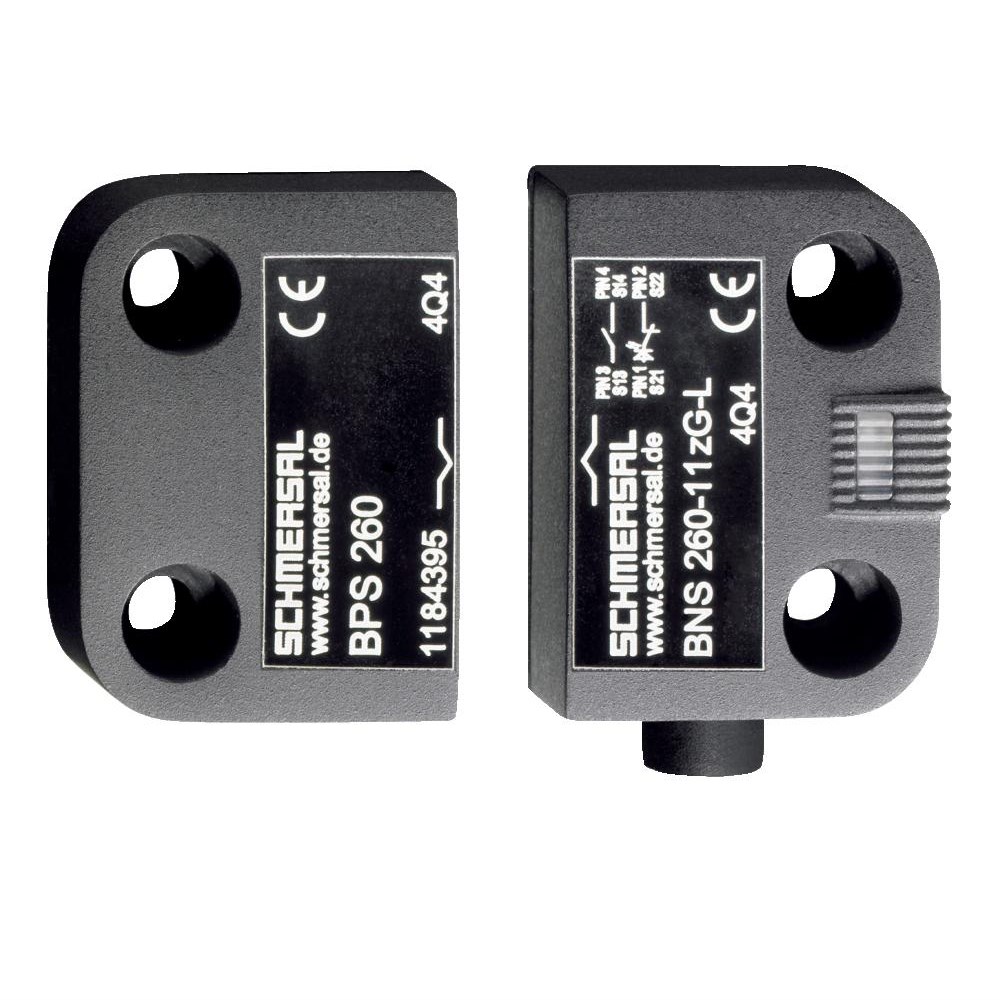

Schmersal 101206142 Magnetic Safety Sensor 3NC 5m Cable

Product Code: 101206142

  • Operates at 75 VDC and 100 A
  • Durable glass fibre thermoplastic housing
  • IP67 protection for harsh environments
  • Compact sensor: 13x26x36 mm size
  • Complies with EN IEC 60947-5-3 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
0
Rated Current (In)
0.4A
Rated Voltage (Ur)
75V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.29kg
Width
26mm
Cable Length
5m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
