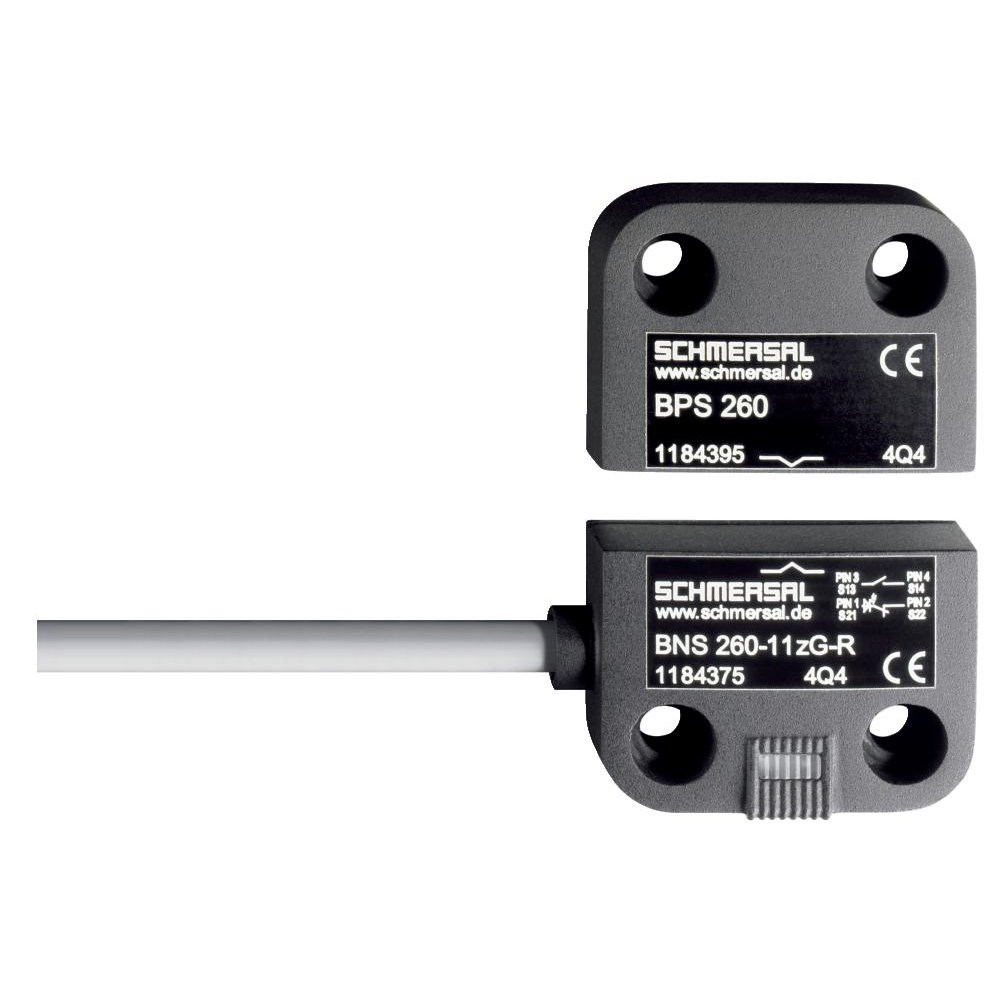

Schmersal 101203879 Magnetic Safety Sensor 5m Cable

Product Code: 101203879

  • Durable with 25 million mechanical cycles
  • IP67 rated for dust and water resistance
  • Operates in -25 to 70°C temperature range
  • Compact size: 13mm x 26mm x 36mm
  • Strong glass fibre reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
0
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.228kg
Width
26mm
Cable Length
5m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
