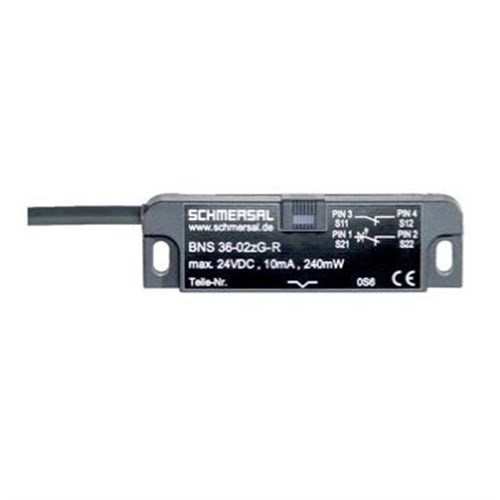

Schmersal 101199595 Safety Sensor 5m Cable

Product Code: 101199595

  • Cable length of 5 meters for extended reach
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 36

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 36-2; BPS 36-1
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.215kg
Width
88mm
Cable Length
5m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
