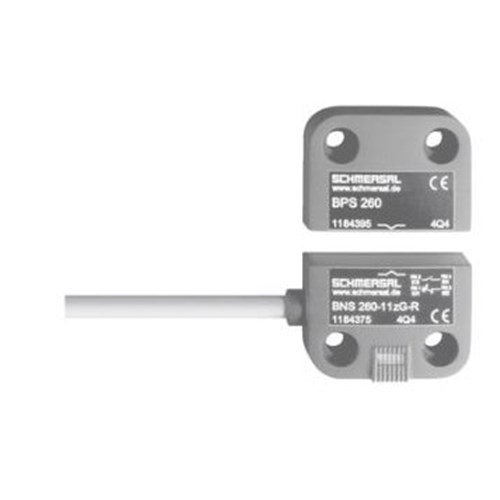

Schmersal 101196351 Magnetic Safety Sensor 10m Cable

Product Code: 101196351

  • Quasi-flush mounting for sleek installation
  • Durable with 25 million cycle lifespan
  • IP67 protection against dust and water
  • Operates in -25 to 70°C temperature range
  • Glass fibre reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Rated Current (In)
0.4A
Rated Voltage (Ur)
75V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.366kg
Width
26mm
Cable Length
10m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
