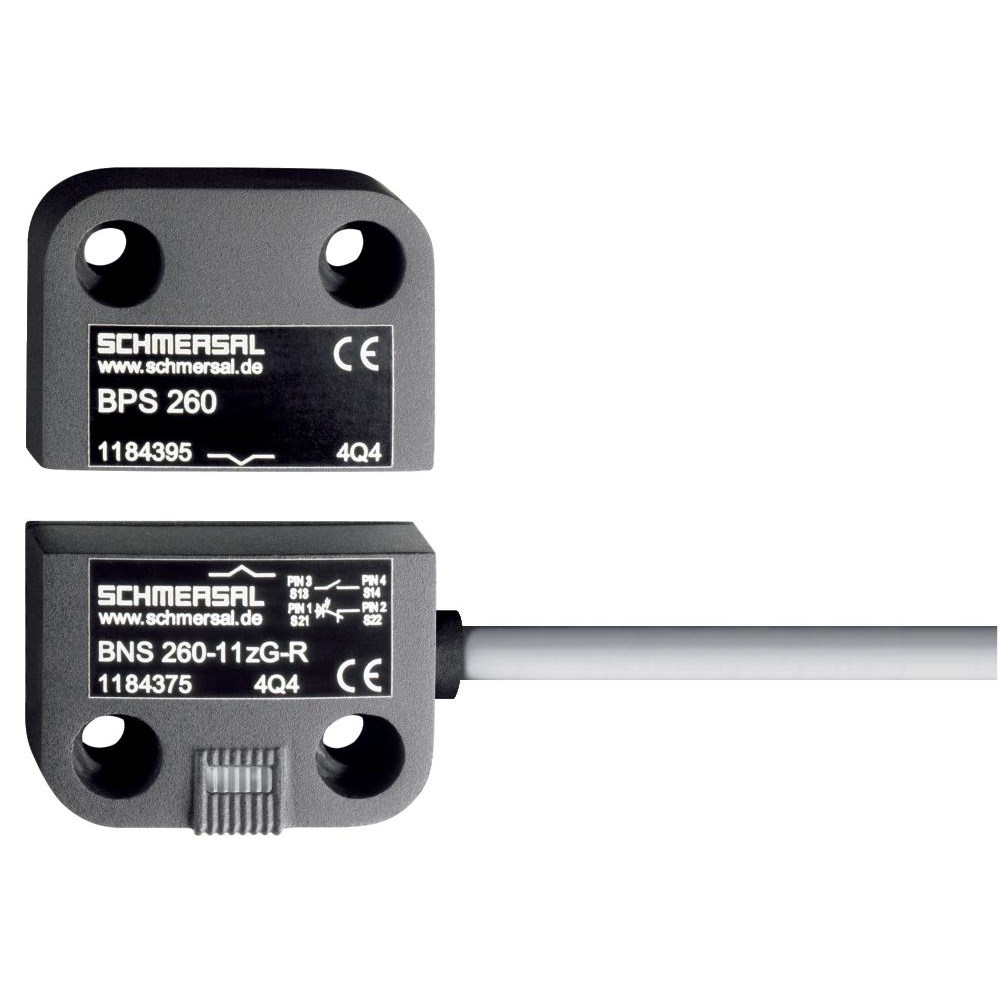

Schmersal 101196137 Magnetic Safety Sensor 5m Cable

Product Code: 101196137

  • Operates at 75 VDC, 0.4 A, and 10 VA
  • Durable with 25 million cycle life
  • Compact size: 13x26x36 mm
  • IP67 protection for harsh environments
  • Quasi-flush mount with magnet actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Rated Current (In)
0.4A
Rated Voltage (Ur)
75V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.22kg
Width
26mm
Cable Length
5m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
