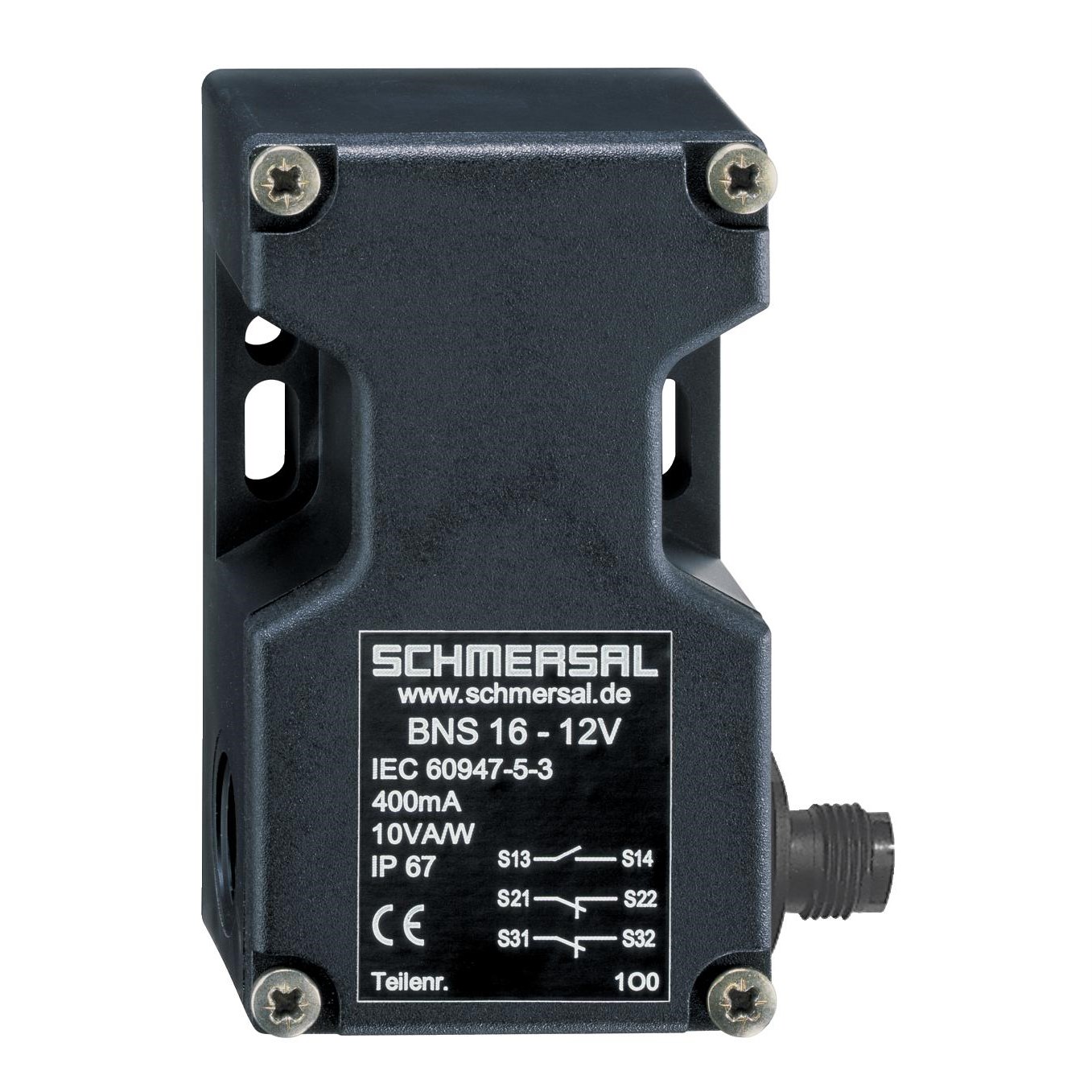

Schmersal 101195761 Magnetic Safety Sensor

Product Code: 101195761

  • Operates at 100 VAC, 0.4 A, and 10 W power
  • Durable with 25 million mechanical cycles
  • IP67 rated for robust protection
  • Made from glass fibre reinforced thermoplastic
  • Works in temps from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 16

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Plug Type
Connector M12
Rated Current (In)
0.4A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BPS 16
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
39.5mm
Height
93mm
Weight
0.139kg
Width
69mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
