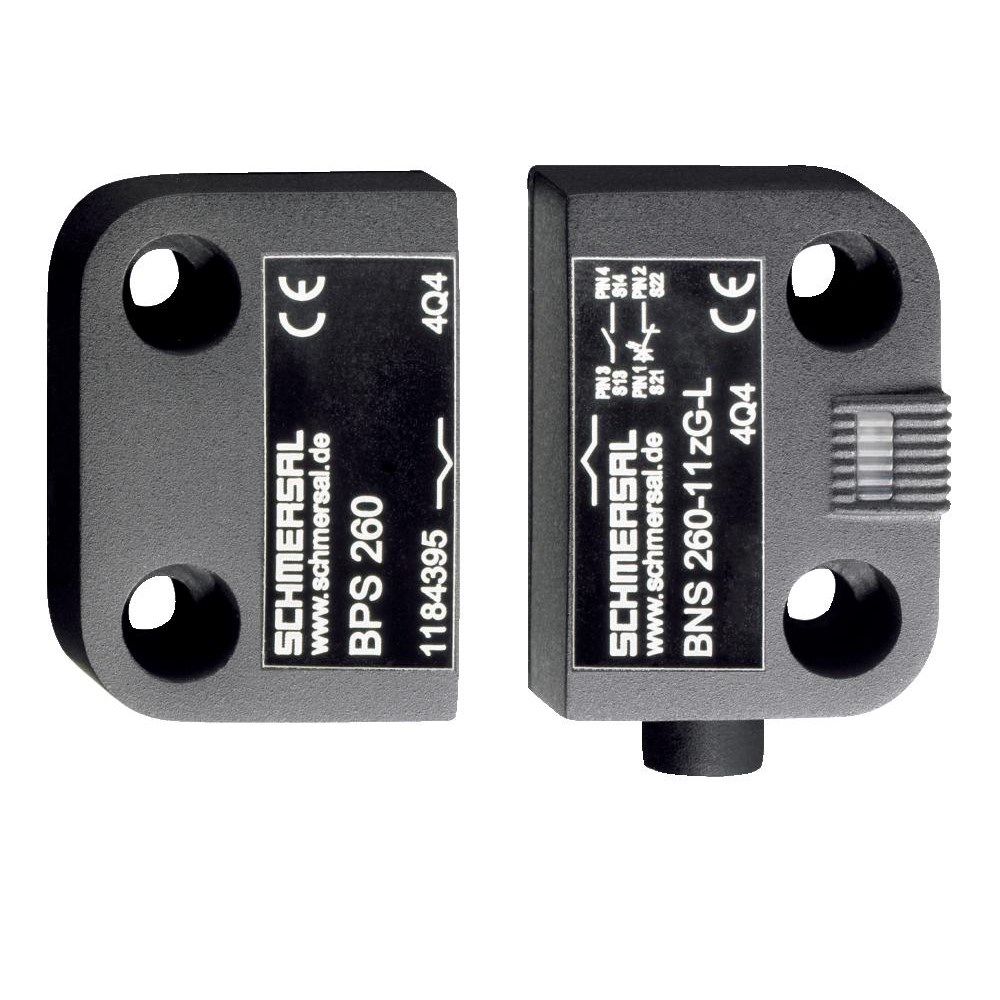

Schmersal 101195758 Magnetic Safety Sensor NO+NC

Product Code: 101195758

  • NO+NC contact configuration for versatile use
  • Durable with 10 million mechanical cycles
  • Robust IP67 protection against dust and water
  • Lightweight design at only 30g
  • Operates efficiently up to 50°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
0
Rated Current (In)
0.4A
Rated Voltage (Ur)
75V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.29kg
Width
26mm
Cable Length
5m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
