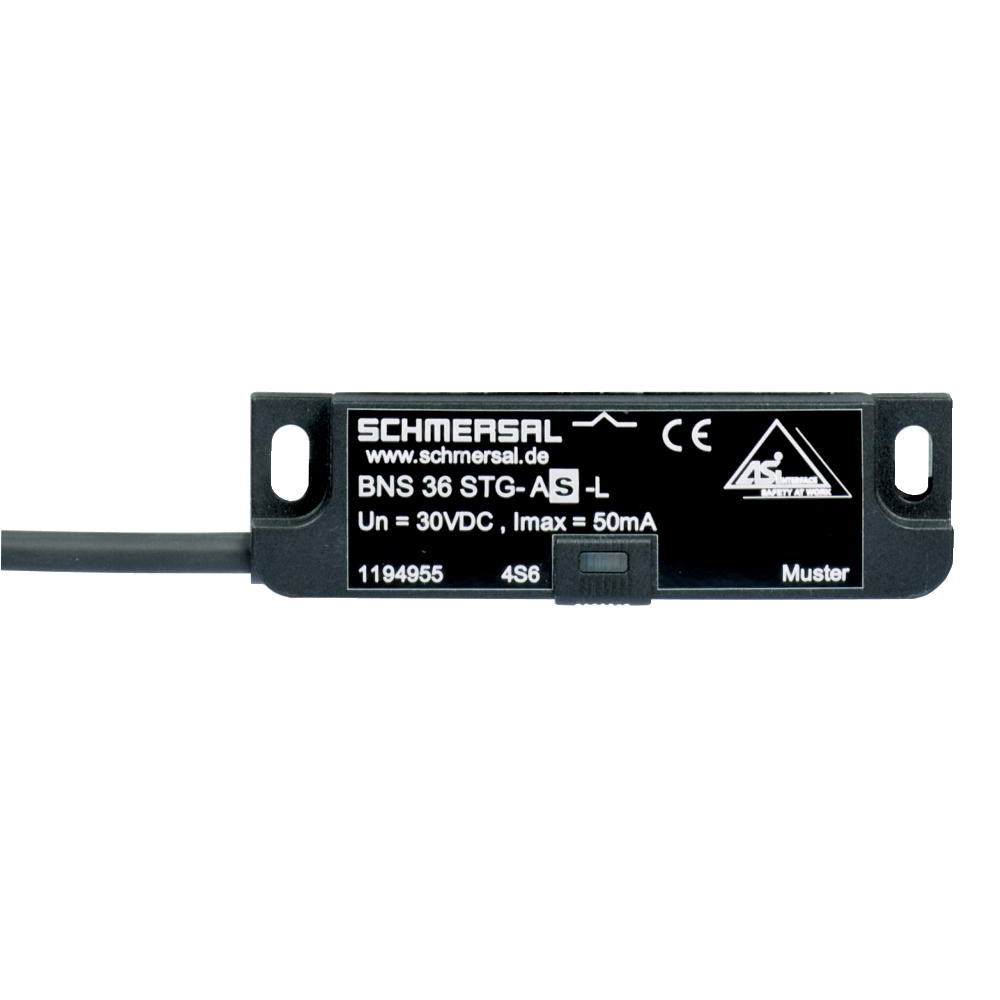

Schmersal 101194956 Magnetic Safety Sensor 2m Cable

Product Code: 101194956

  • Operates on 18-31.6 VDC with 50 mA current
  • Quasi-flush mount design for easy installation
  • Durable glass fibre reinforced thermoplastic housing
  • IP67 rated for robust protection against dust and water
  • Complies with EN IEC and ISO safety standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
As - Interface Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 36

Electrical

Plug Type
Connecting cable with M12 connector, straight, 4-pole
Rated Voltage (Ur)
18 to 31.6 V DC (Protection against polarity reversal)

Mechanical

Actuator Type
BPS 36-2
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.11kg
Width
88mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
