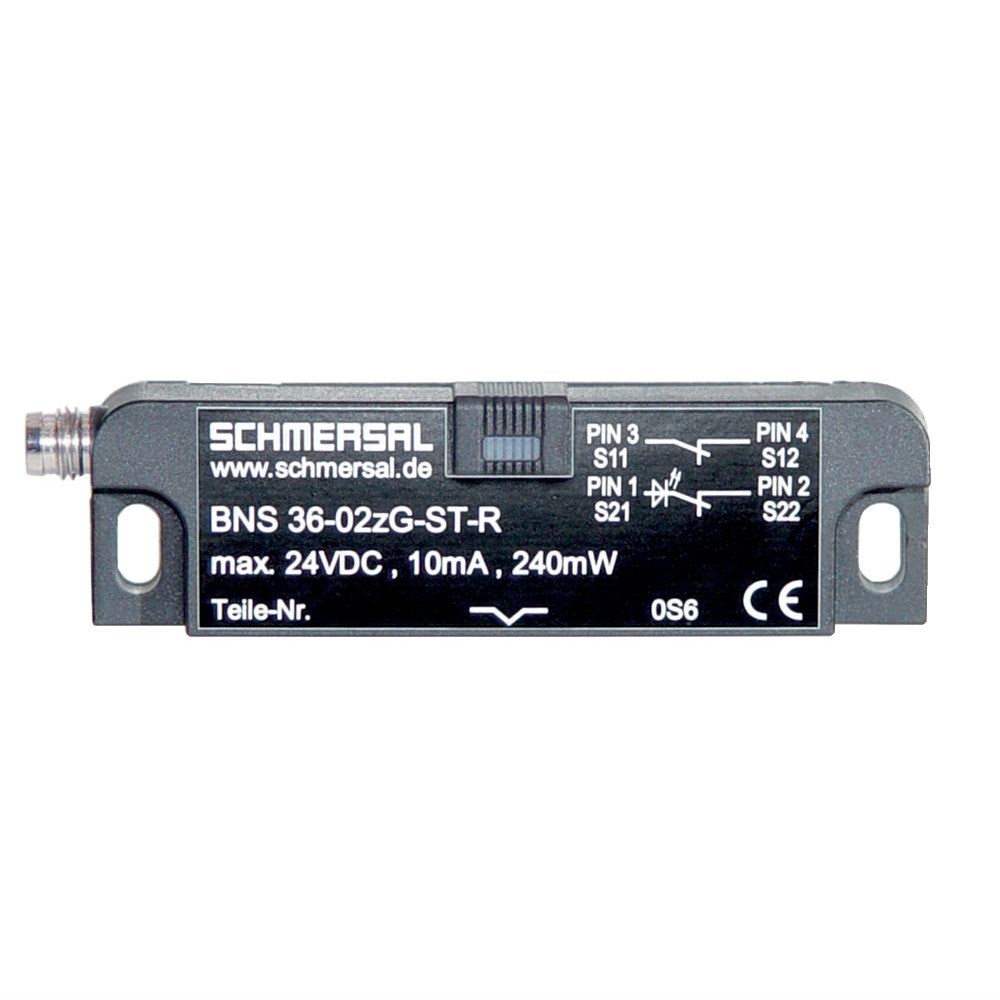

Schmersal 101193254 Magnetic Safety Sensor

Product Code: 101193254

  • Operates at 30 VDC, 0.24 W
  • Durable with 25 million cycles
  • IP67 for robust protection
  • Quasi-flush mounting design
  • Compact size: 13x88x25 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 36

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Plug Type
Connector 8 mm, 6-pole, Latching interlocking
Rated Current (In)
0.01A
Rated Voltage (Ur)
30V DC

Mechanical

Actuator Type
BPS 36-2; BPS 36-1
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.03kg
Width
88mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
