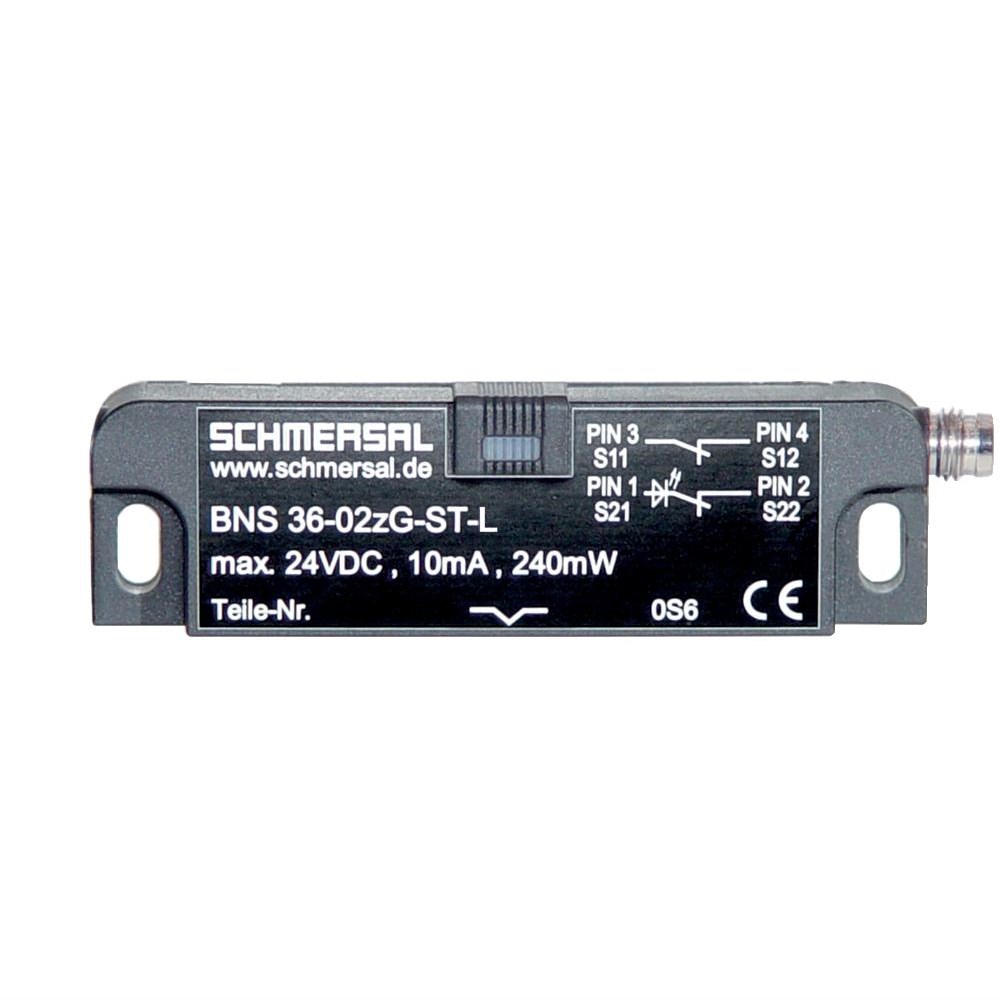

Schmersal 101193253 Magnetic Safety Sensor 2NC

Product Code: 101193253

  • 30 VDC, 0.01 A rated for low power use
  • Durable thermoplastic housing
  • IP67 protection against dust and water
  • Compact size: 13 x 88 x 25 mm
  • Meets BG-GS-ET-14, cULus, EN IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 36

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Plug Type
Connector 8 mm, 6-pole, Latching interlocking
Rated Current (In)
0.01A
Rated Voltage (Ur)
30V DC

Mechanical

Actuator Type
BPS 36-2; BPS 36-1
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.029kg
Width
88mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
