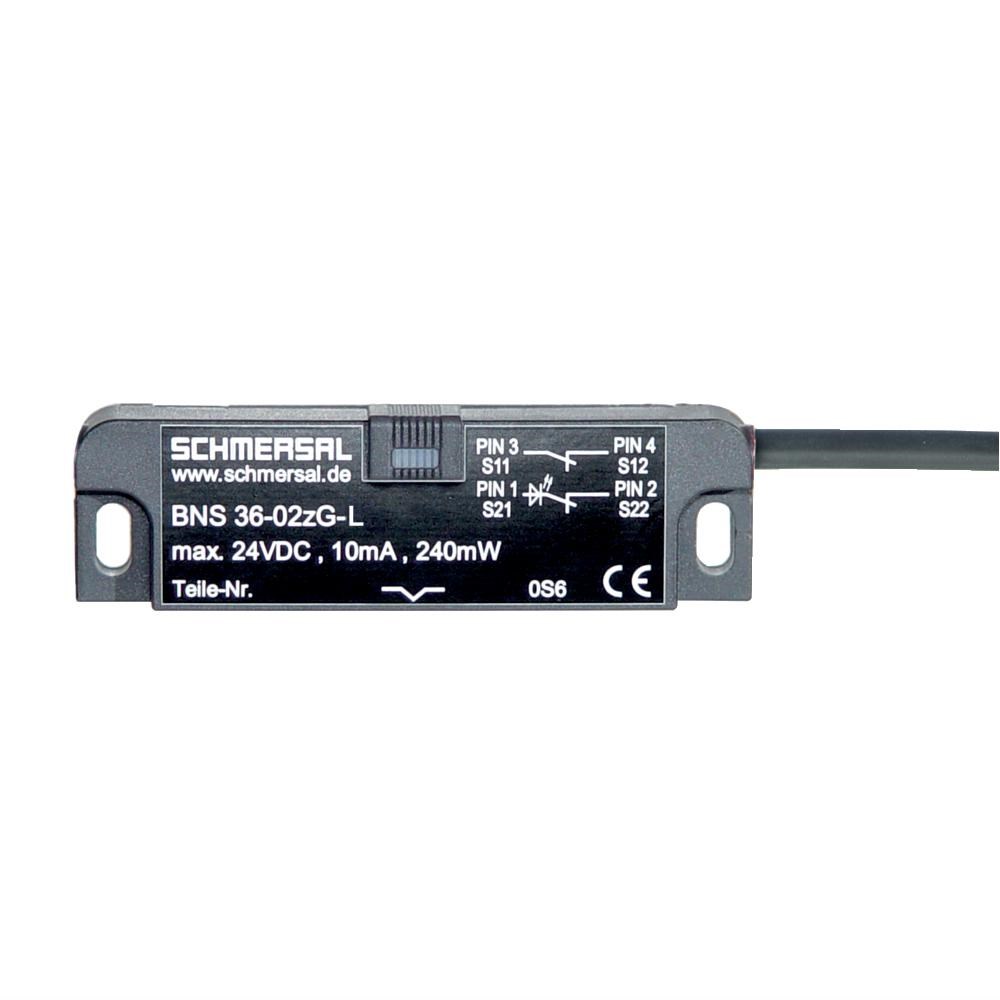

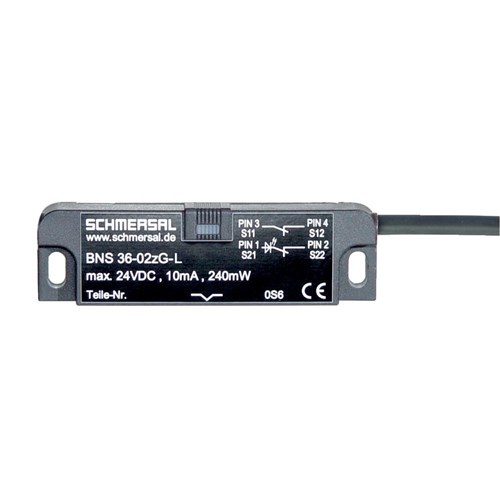

Schmersal 101193232 Magnetic Safety Sensor 1m Cable

Product Code: 101193232

  • Operates on 24 VDC with low power usage
  • Durable with 25 million mechanical cycles
  • Quasi-flush mount for streamlined installation
  • IP67 rated for robust protection
  • Works in temperatures from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 36

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
0
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 36-2; BPS 36-1
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.094kg
Width
88mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
