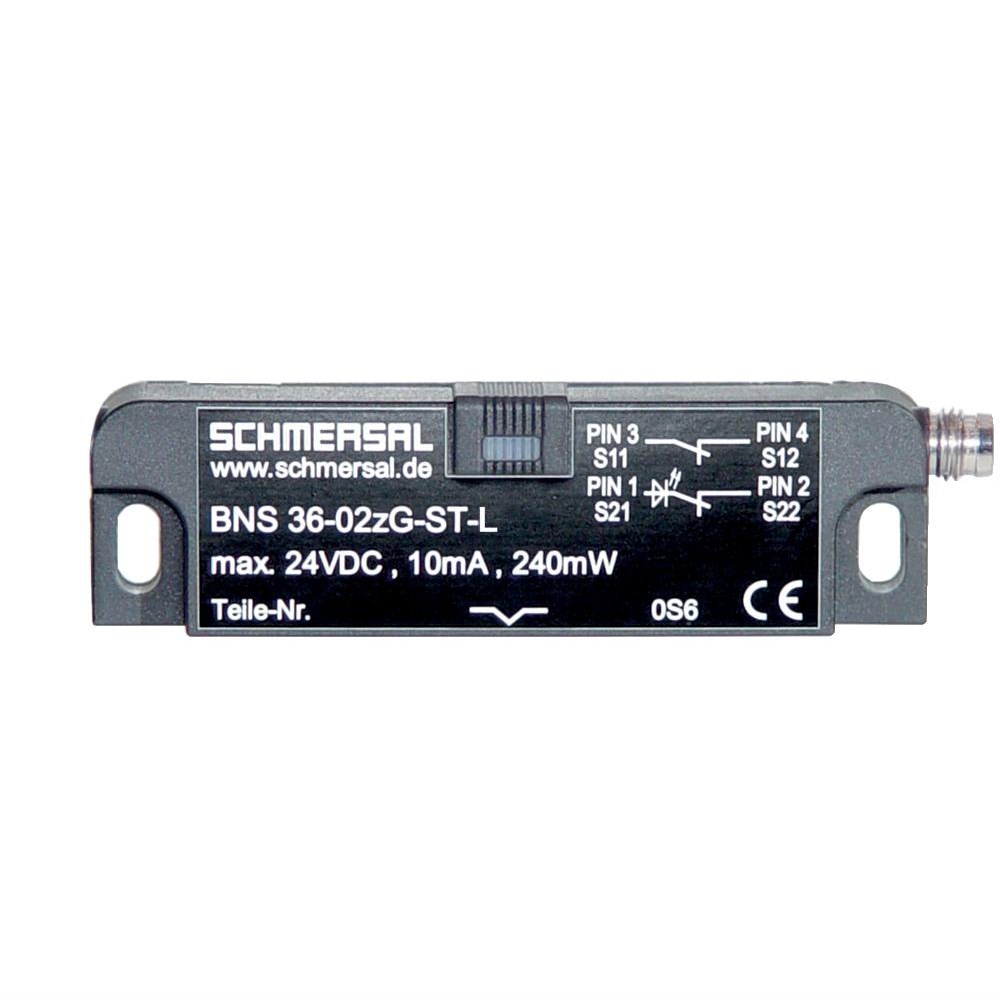

Schmersal 101193160 Magnetic Safety Sensor

Product Code: 101193160

  • 24 VDC, 0.01 A, 0.24 W for efficient operation
  • Quasi-flush mount design for easy installation
  • Durable with 25 million mechanical cycles
  • IP67 rated for robust protection against elements
  • Operates in -25 to 70°C temperature range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 36

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Plug Type
Connector M8, 4-pole, screw terminal or snap fitting
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 36-2; BPS 36-1
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.038kg
Width
88mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
