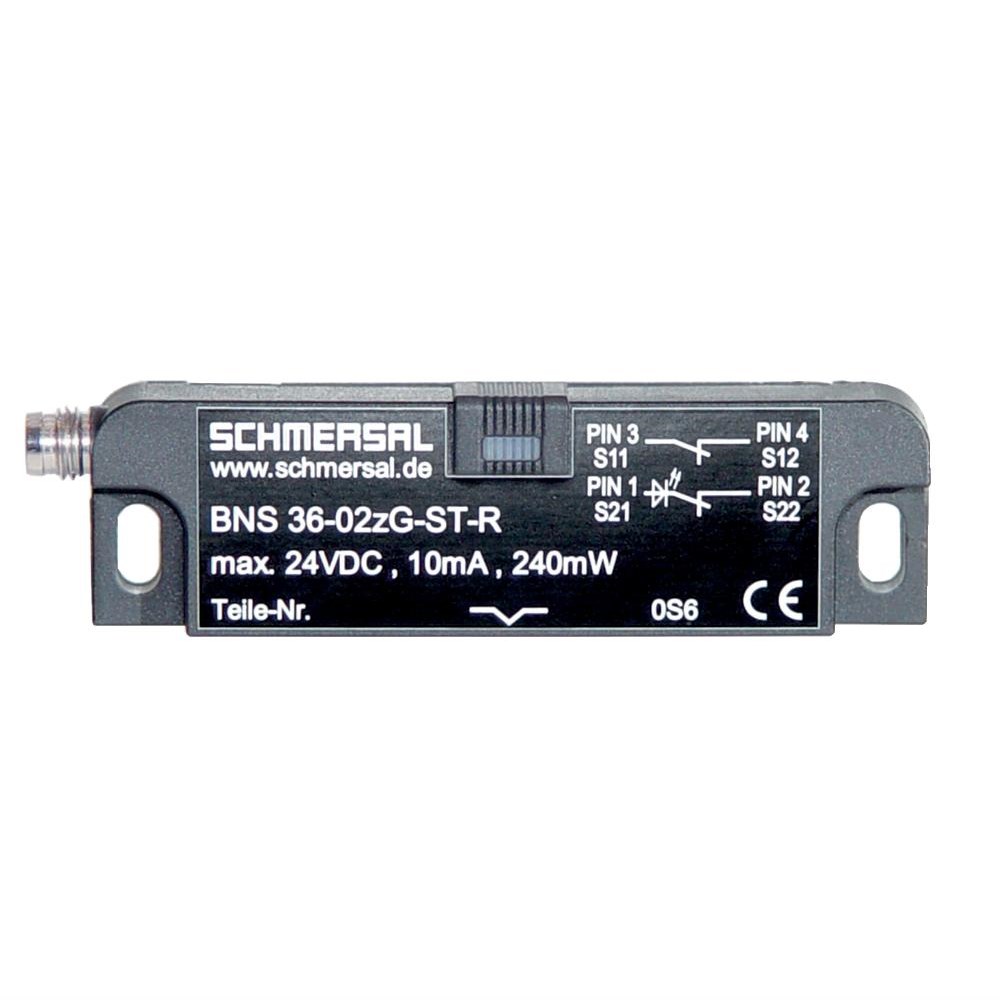

Schmersal 101193158 Magnetic Safety Sensor

Product Code: 101193158

  • Operates at 24 VDC, 0.01 A
  • Durable with 25M cycles mechanical life
  • Quasi-flush mounting design
  • Robust IP67 protection rating
  • Wide temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 36

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Plug Type
Connector M8, 4-pole, screw terminal or snap fitting
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 36-2; BPS 36-1
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.029kg
Width
88mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
