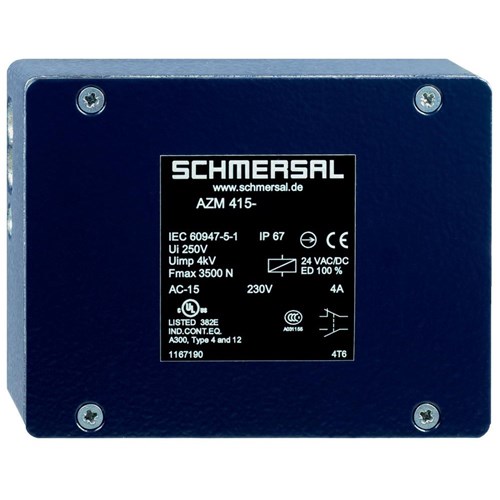

Schmersal 101193128 Solenid Interlock Switch 230VAC NC

Product Code: 101193128

  • Durable aluminium housing, IP67 protection
  • Rated for 230 VAC and 4 A current
  • Mechanical life of 1 million cycles
  • Slow action with NC contact configuration
  • Complies with cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
4
Rated Current (In)
0.25
Rated Voltage (Ur)
230 V AC/DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
903 g
Width
130 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
