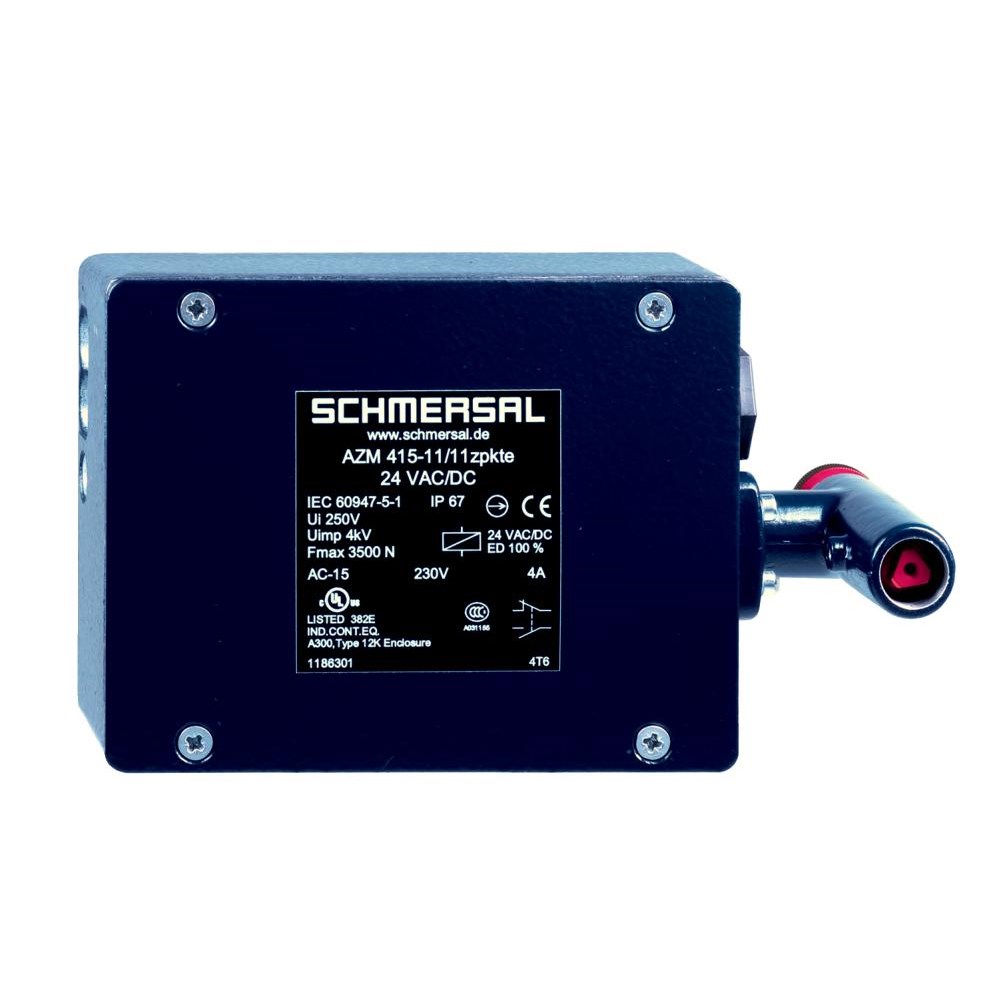

Schmersal 101193002 Solenid Interlock Switch 24VAC/VDC NO+NC

Product Code: 101193002

  • Durable aluminium housing with IP67 protection
  • Operates at 24 VAC/VDC, handling up to 4 A
  • Long-lasting with 1 million mechanical cycles
  • Certified by cULus, CCC, and UKCA standards
  • Slow action mechanism for precise control
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
1
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
80 mm
Height
100 mm
Weight
996 g
Width
172 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65
