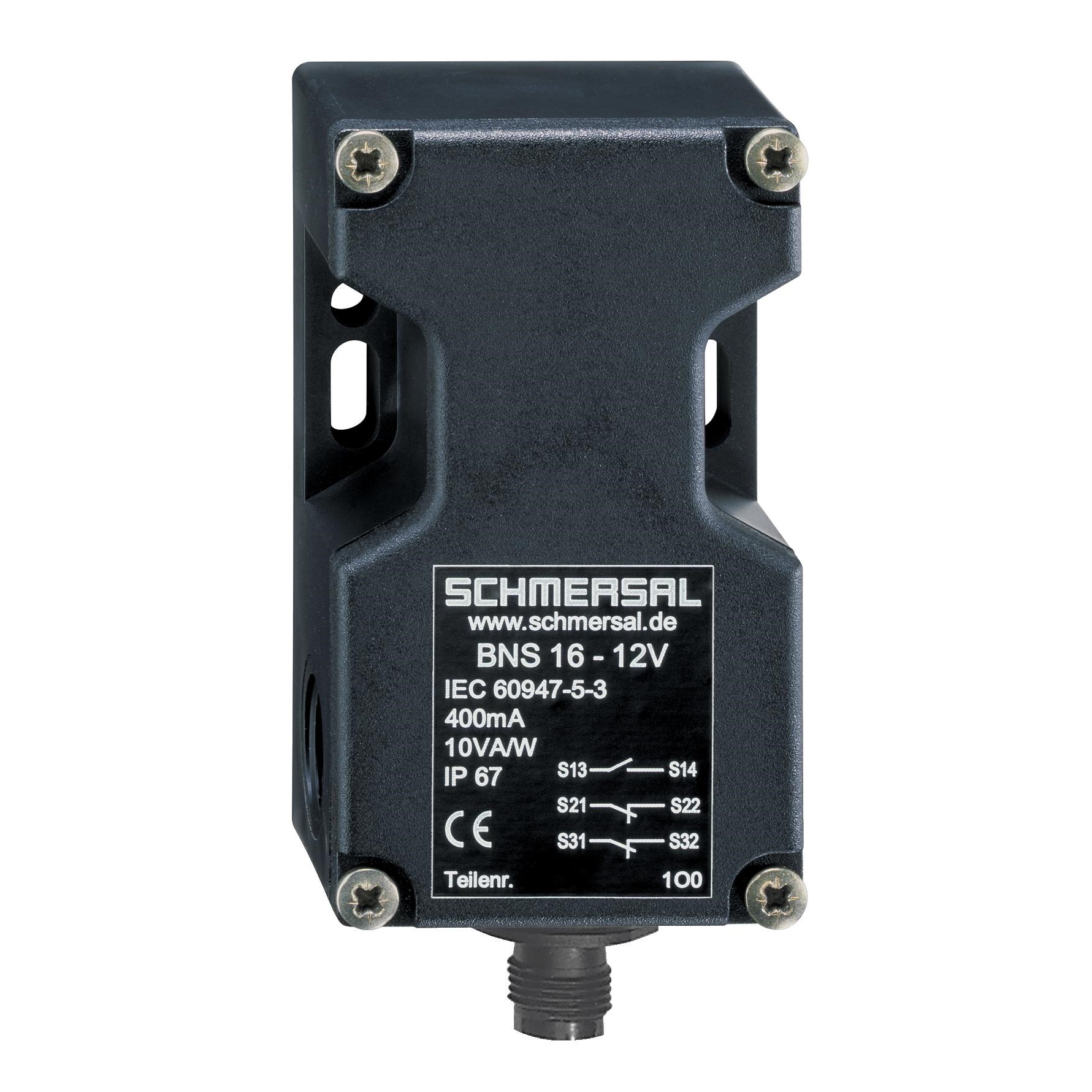

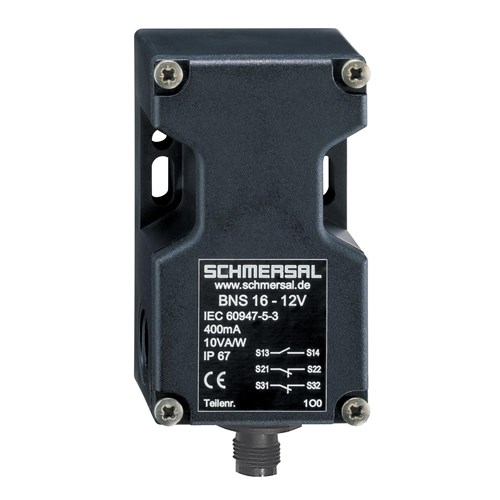

Schmersal 101192588 Magnetic Safety Sensor

Product Code: 101192588

  • Operates at 100 VAC, 0.4 A
  • Durable with 25 million cycles
  • IP67 protection rating
  • Glass fibre reinforced thermoplastic housing
  • Suitable for -25 to 70°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 16

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Plug Type
Connector M12
Rated Current (In)
0.4A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BPS 16
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
39.5mm
Height
107mm
Weight
0.13kg
Width
55mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
