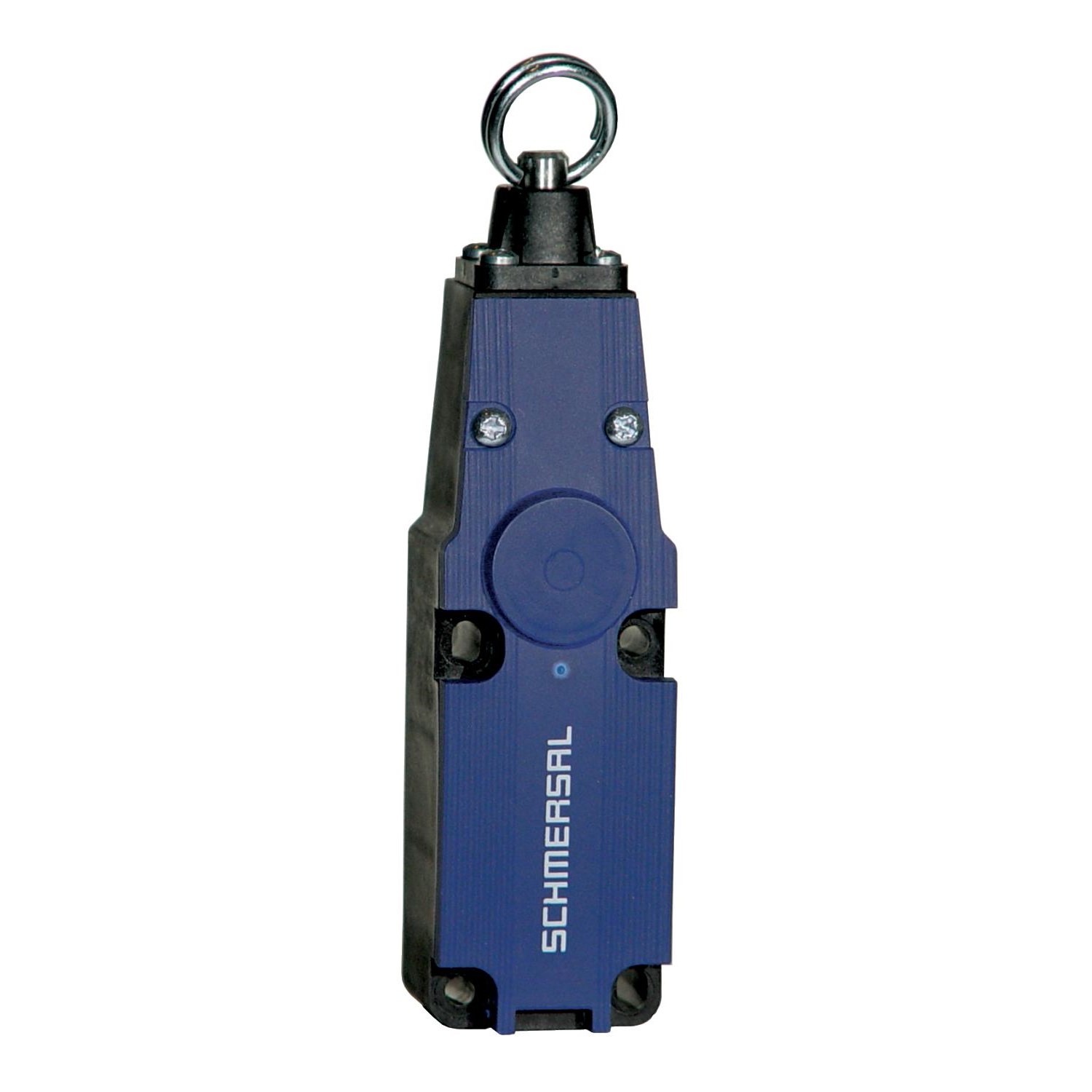

Schmersal 101192481 Pull-Wire Switch 1NO

Product Code: 101192481

  • Durable glass fibre reinforced thermoplastic housing
  • High protection with IP67 rating
  • Long mechanical life of 1,000,000 cycles
  • Operates in temperatures from -25 to 70°C
  • Complies with CCC and EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pull - Wire Switch
Brand
Schmersal
Series
TQ 700

Electrical

No. of N/O Contacts
2
Rated Current (In)
4A/4A
Rated Voltage (Ur)
230VAC/24VDC
Terminal Type
Screw terminals

Mechanical

Housing Material
Glass-fibre, thermoplastic

Dimensions & Physical Data

Depth
42.2mm
Height
160mm
Weight
0.205kg
Width
40.5mm

Environmental

IP Rating
IP67
Ambient Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
