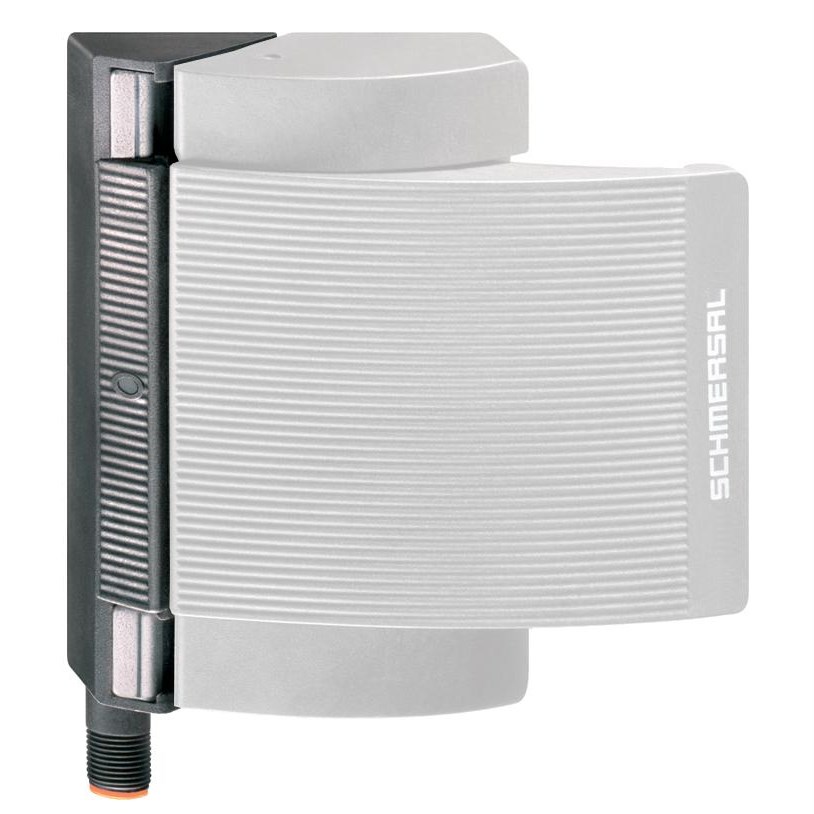

Schmersal 101191703 Magnetic Safety Sensor 2m Cable

Product Code: 101191703

  • Operates at 24 VDC and 0.01 A
  • Durable with 25 million cycles lifespan
  • IP67 rated for robust protection
  • Compact size: 43.3 x 119.5 x 140 mm
  • Quasi-flush mount design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS-B20

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Plug Type
Connecting cable with M12 connector, straight, 4-pole
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BNS-B20-B01
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
43.3mm
Height
140mm
Weight
0.188kg
Width
119.5mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
