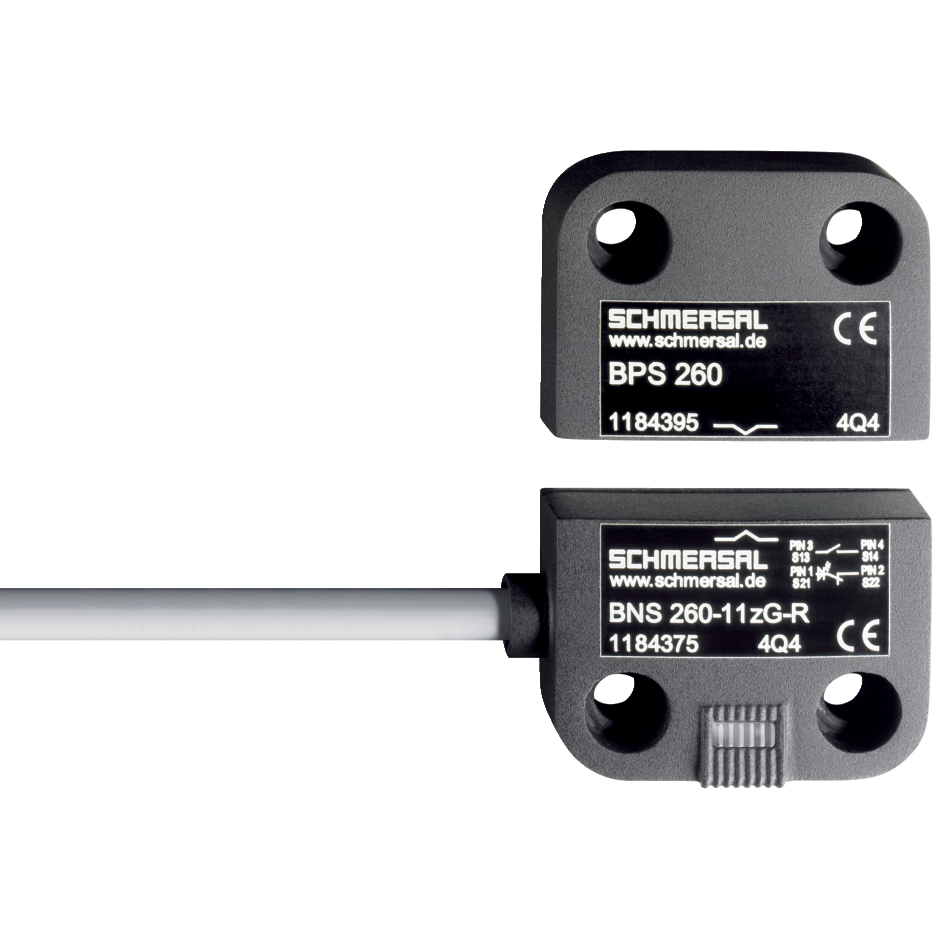

Schmersal 101191004 Magnetic Safety Sensor 2m Cable

Product Code: 101191004

  • Durable with 25 million cycles mech. life
  • IP67 rating ensures protection from dust/water
  • Operates in -25 to 70°C temp range
  • Compact size: 13 x 26 x 36 mm
  • Quasi-flush mounting for easy install
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.105kg
Width
26mm
Cable Length
2m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
