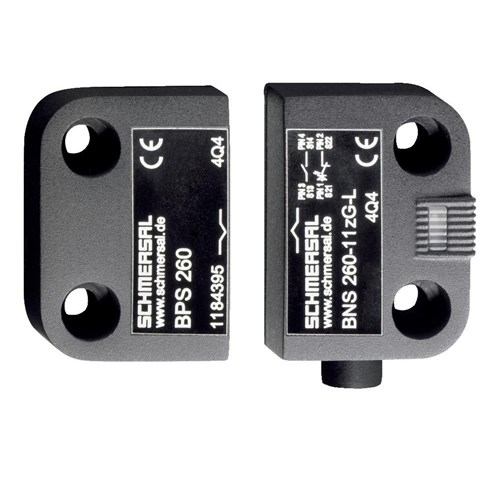

Schmersal 101190997 Magnetic Safety Sensor 1NO+2NC 5m Cable

Product Code: 101190997

  • Rated for 100 A current
  • IP67 protection rating
  • Glass fibre reinforced thermoplastic housing
  • Operates up to 70°C
  • Complies with EN IEC 60947-5-3, EN ISO 13849-1
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.274kg
Width
26mm
Cable Length
5m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
