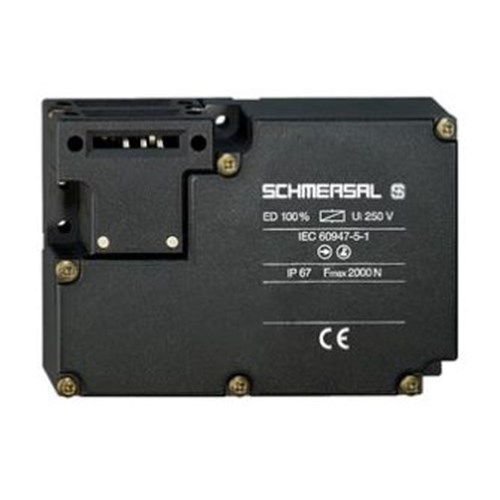

Schmersal 101190060 Solenid Interlock Switch 24/230VAC, 24VDC NO+NC

Product Code: 101190060

  • Supports 24/230 VAC & 24 VDC voltages
  • Durable with 1,000,000 mechanical cycles
  • IP67 protection for harsh environments
  • NO+NC contact configuration
  • Reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 161

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.25
Rated Voltage (Ur)
24/230 V AC, 24 V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
4 x M16 x 1.5
Guard Locking Force
2000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
90 mm
Weight
470 g
Width
130 mm

Environmental

Operating Temperature
-30 to 60 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
