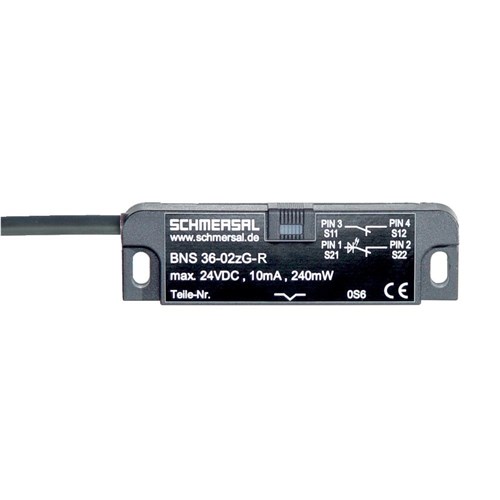

Schmersal 101190050 Magnetic Safety Sensor 1m Cable

Product Code: 101190050

  • Operates at 24 VDC with 0.01 A current
  • Durable design, 25 million cycles
  • IP67 protection for harsh environments
  • Compact size: 13x88x25 mm
  • Wide temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 36

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 36-2; BPS 36-1
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.065kg
Width
88mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
