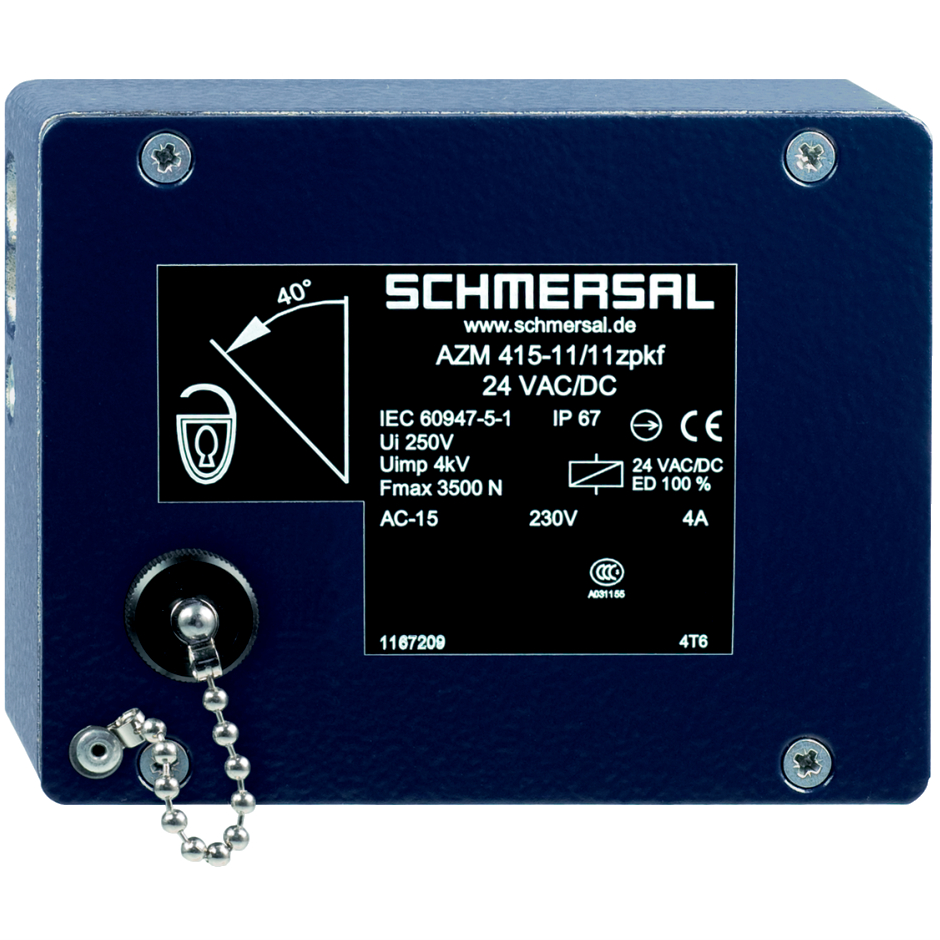

Schmersal 101190000 Solenid Interlock Switch 24VAC/VDC 1NO+1NC

Product Code: 101190000

  • 24 VAC/VDC solenoid interlock
  • Durable aluminium housing, IP67 rated
  • 1NO+1NC contact configuration
  • Mechanical life of 1 million cycles
  • cULus, CCC, UKCA certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
56.5 mm
Height
100 mm
Weight
910 g
Width
141 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
