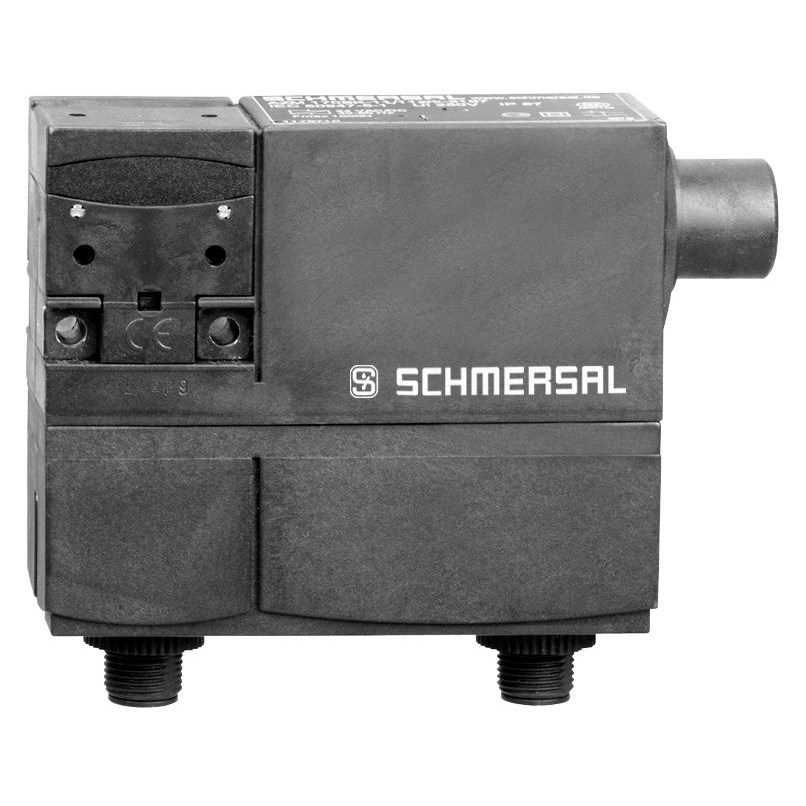

Schmersal 101188359 Solenid Interlock Switch 24VAC/VDC NC

Product Code: 101188359

  • Operates at 24 VAC/VDC with 12 W power
  • Durable with 1,000,000 mechanical cycles
  • IP67 protection against dust and water
  • Compact size: 30x90x84 mm for easy mounting
  • Complies with IFA, cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
4
No. of N/O Contacts
1
Rated Current (In)
0.083333
Rated Voltage (Ur)
24 V DC

Mechanical

Guard Locking Force
1,000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
92.5 mm
Weight
310 g
Width
108 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67
