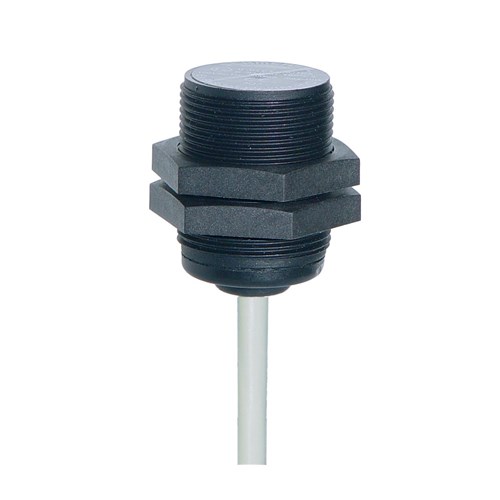

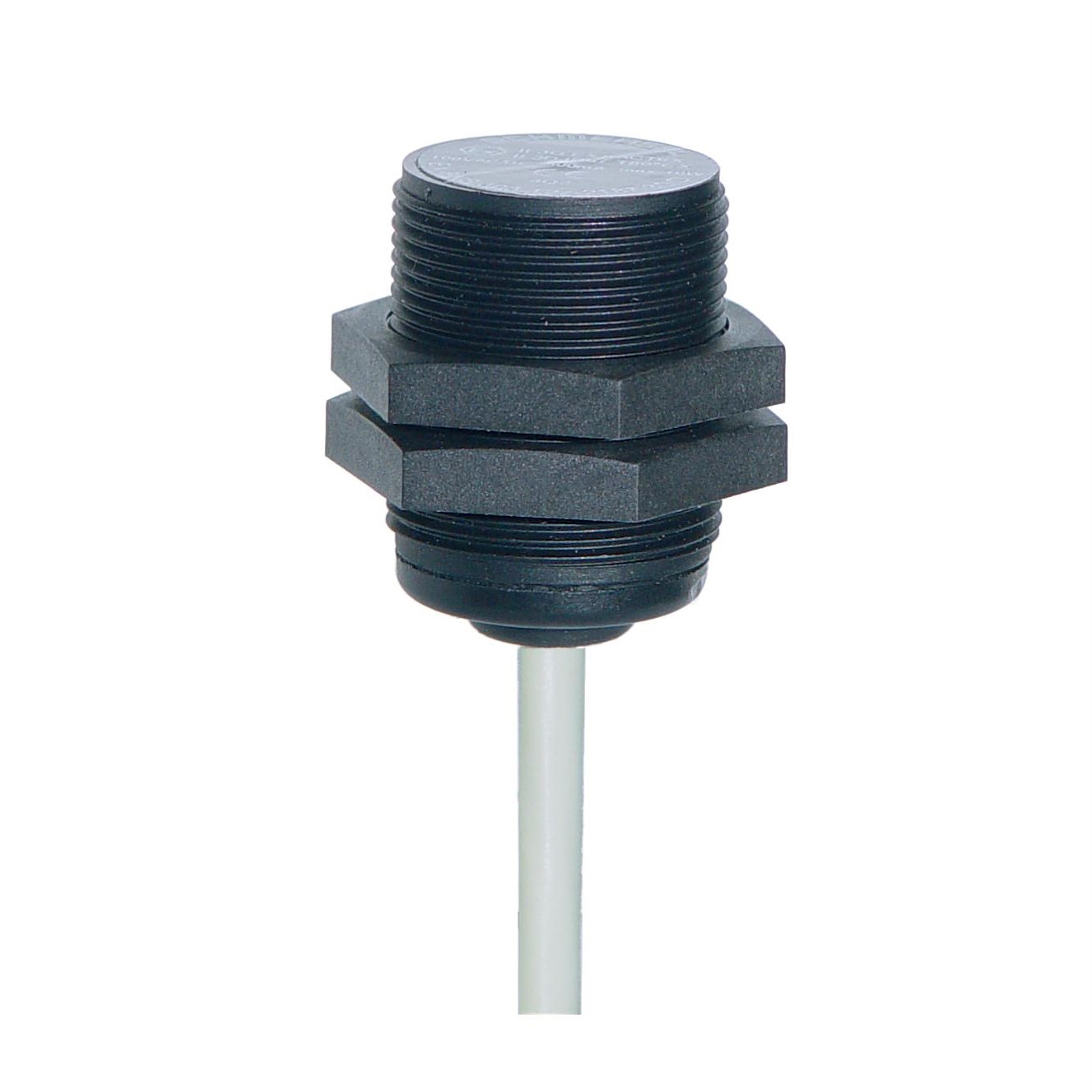

Schmersal 101187774 Magnetic Safety Sensor 5m Cable

Product Code: 101187774

  • Quasi-flush mounting for sleek installation
  • Durable with 25 million mechanical cycles
  • IP67 protection against dust and water
  • Operates in -25 to 70°C temperature range
  • Glass fibre reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
EX-BNS 303

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.4A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BPS 303; BPS 303 SS; coded; BPS 300
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
44mm
Weight
0.226kg
Cable Length
5m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
