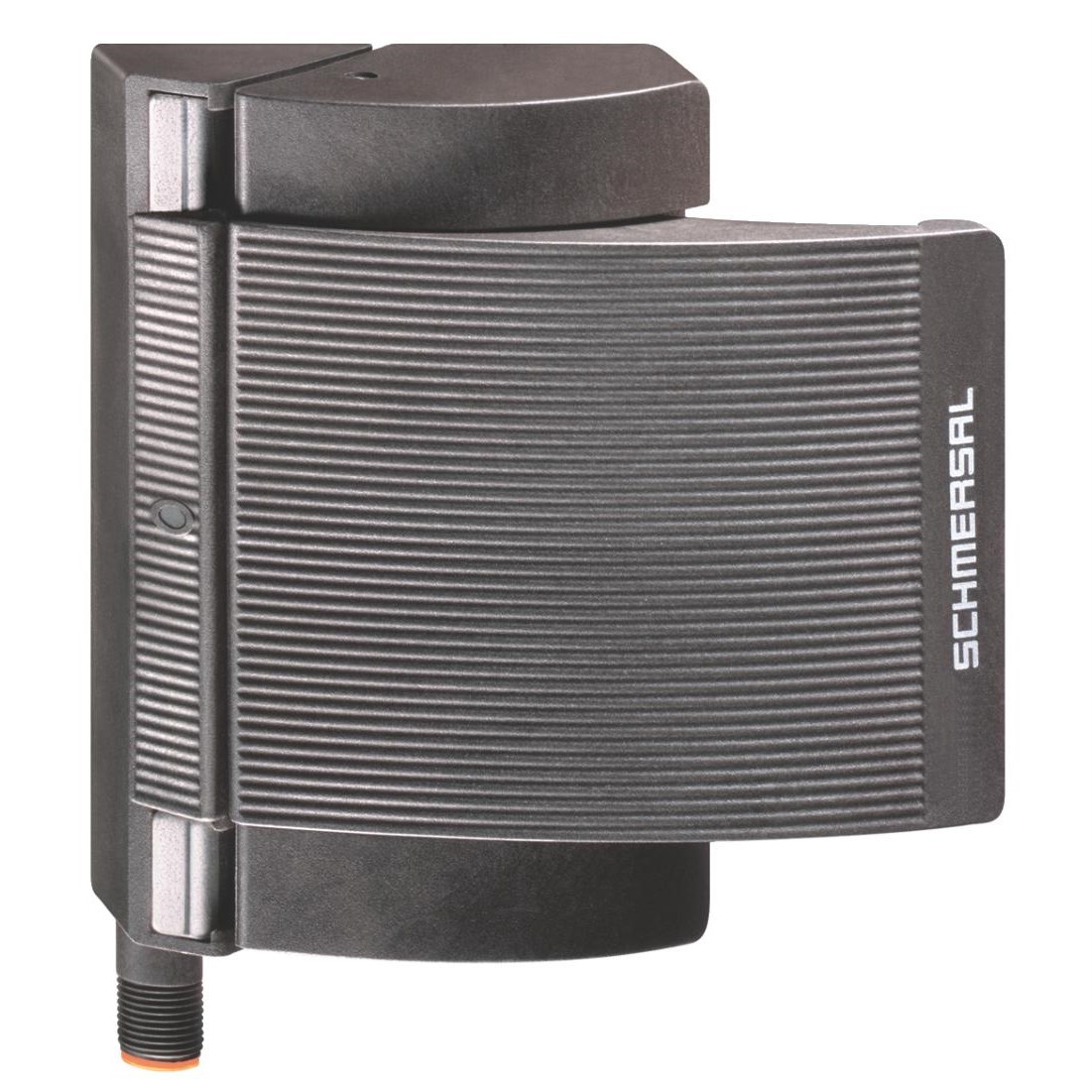

Schmersal 101187773 Magnetic Safety Sensor 5m Cable

Product Code: 101187773

  • Operates at 24 VDC with low power consumption
  • Durable with 25 million mechanical cycles
  • Quasi-flush mount for easy installation
  • IP67 protection against dust and water
  • Wide temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS-B20

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BNS-B20-B01
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
43.3mm
Height
140mm
Weight
0.34kg
Width
119.5mm
Cable Length
5m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
