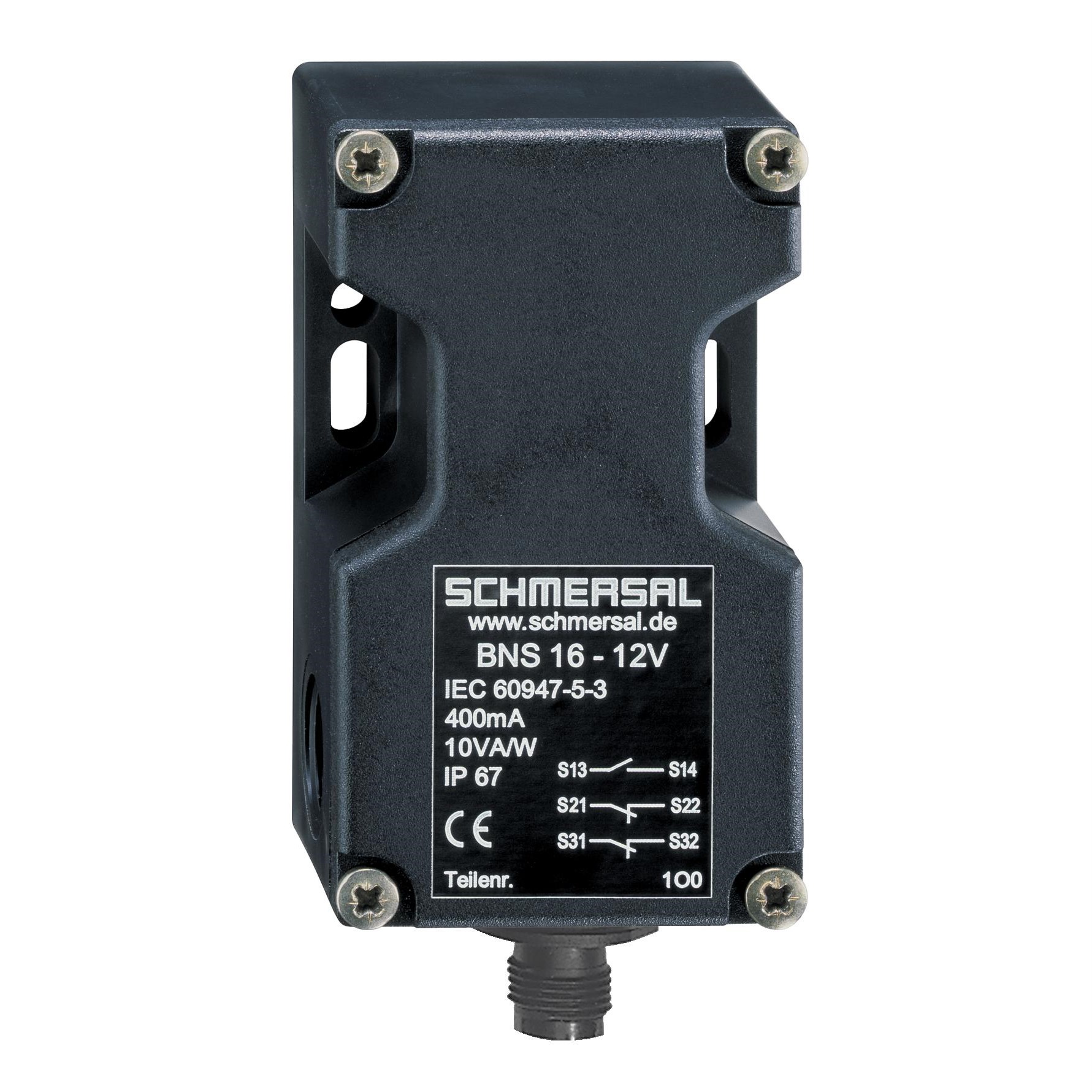

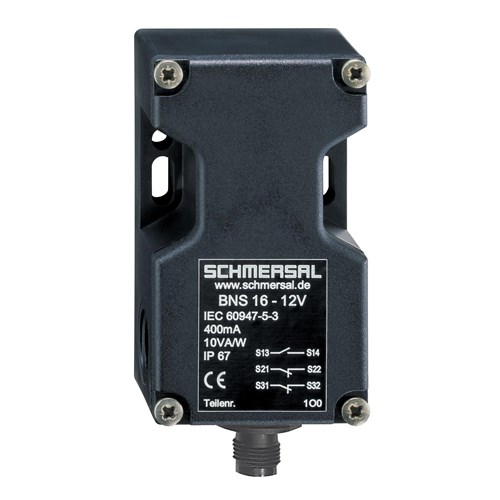

Schmersal 101187135 Magnetic Safety Sensor 1NO+2NC

Product Code: 101187135

  • Compact sensor: 39x52x90 mm size
  • Durable glass fibre reinforced thermoplastic housing
  • IP67 protection for harsh environments
  • Reliable 1NO+2NC contact configuration
  • Handles up to 100 VAC and 0.4 A
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 16

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Plug Type
Connector M12
Rated Current (In)
0.4A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BPS 16
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
39.5mm
Height
107mm
Weight
0.129kg
Width
55mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
