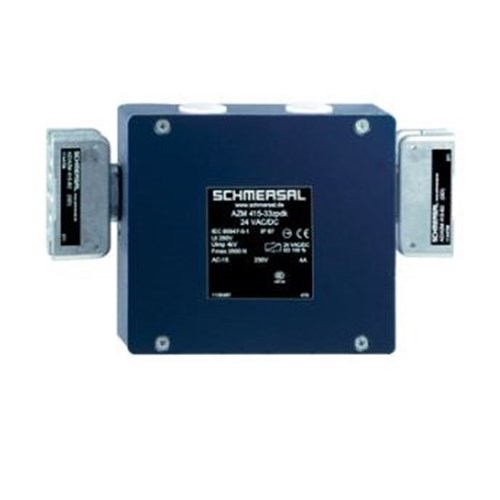

Schmersal 101187041 Solenid Interlock Switch 24VAC/VDC

Product Code: 101187041

  • Durable aluminium housing, IP67 rated
  • Supports 24 VAC/VDC operation
  • Long mechanical life: 1 million cycles
  • Complies with cULus, CCC, UKCA standards
  • Slow action with a force of 15 N
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
3
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC
Terminal Type
Screw terminals

Mechanical

Actuator Type
Ball latch (spring-loaded)
Cable Entry
2 x M20 x 1.5
Guard Locking Force
2500 N
Housing Material
Aluminium (painted)

Dimensions & Physical Data

Depth
46.5 mm
Height
125 mm
Weight
1240 g
Width
141 mm

Environmental

Operating Temperature
-25 to 50 °C
IP Rating
IP65, IP67

Documents

IPD Product Catalogue V17
